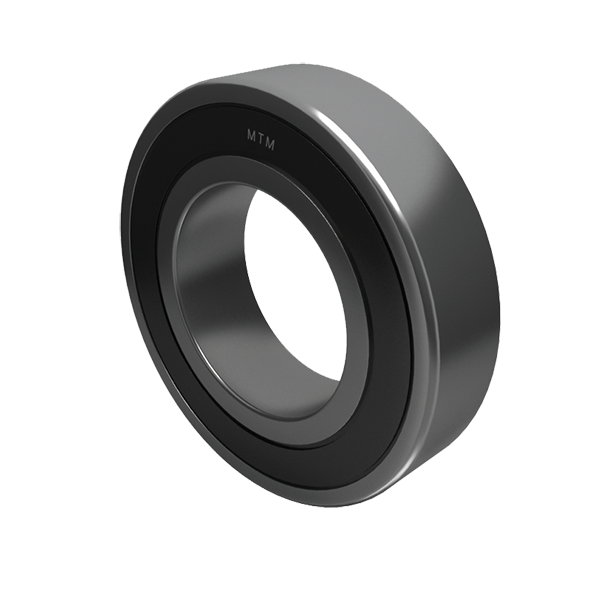

Ball Bearing 63000 2RS

Name: Ball Bearing 63000 2RS
SKU: 63000-2RS-MTM

Availability: Available

product code: 63000-2RS-MTM

product ean: 5907772115619

d [mm]	10
D [mm]	26
B [mm]	12
nośność dynam. [N]	4160
nośność stat. [N]	1780
Waga [kg]	0,025

Download as PDF

Rod End SIL12 T/K

SIL12-T/K-MTM

D [mm] - 12

B [mm] - 16

M [mm] - 12

A [mm] - 32

F [mm] - 50

L [mm] - 66

K [mm] - 22

J [mm] - 17,5

O [mm] - 15,4

G [mm] - M12 x 1,75

GL [mm] - 22

Sw +10/-5% [mm] - 19

Waga [kg] - 0,100

nośność dynam. [N] - 17000

nośność stat. [N] - 24000

Available

Product prices will become visible after signing in.

Rod End SI12 T/K

SI12-T/K-MTM

D [mm] - 12

B [mm] - 16

M [mm] - 12

A [mm] - 32

F [mm] - 50

L [mm] - 66

K [mm] - 22

J [mm] - 17,5

O [mm] - 15,4

G [mm] - M12 x 1,75

GL [mm] - 22

Sw +10/-5% [mm] - 19

Weight [kg] - 0,100

load rating dynam. [N] - 17000

load rating stat. [N] - 24000

Available

Product prices will become visible after signing in.

Sliding bush TUP1/40X30

TUP1/40X30-MTM

axle diameter [mm] - 40

hole [mm] - 44

lenght [mm] - 30

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Tapered Roller Bearing 32214

32214-MTM

d [mm] - 70

D [mm] - 125

T [mm] - 33,25

Waga [kg] - 1,600

nośność dynam. [N] - 157000

nośność stat.[N] - 208000

Available

Product prices will become visible after signing in.

Rod End SAL12 T/K

SAL12-T/K-MTM

D [mm] - 12

B [mm] - 16

M [mm] - 12

A [mm] - 32

F [mm] - 54

L [mm] - 70

O [mm] - 15,4

G [mm] - M12 x 1,75

GL [mm] - 33

Waga [kg] - 0,085

nośność dynam. [N] - 17000

nośność stat. [N] - 24000

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210

UCF210-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
