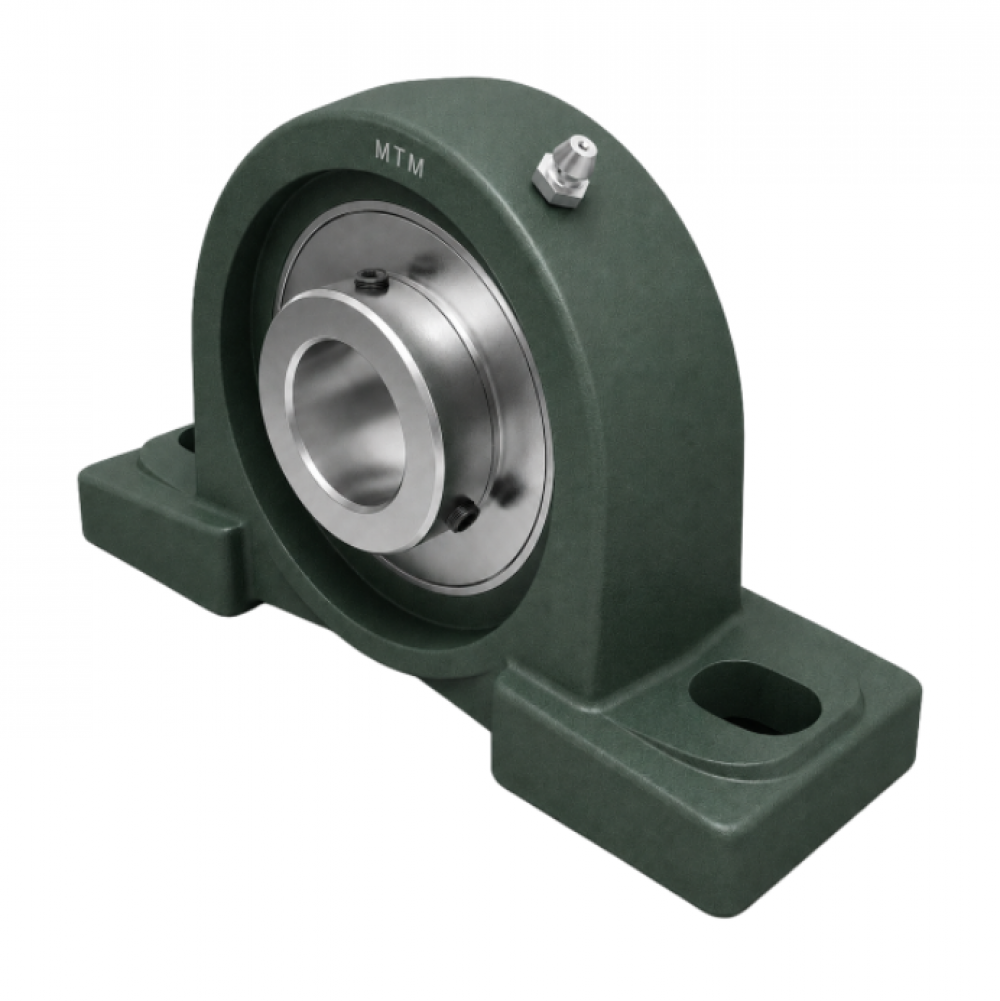

Pillow Block Bearing UCP216

Availability: Available

product code: UCP216-MTM

product ean: 5907772142516

d [mm]	80
h [mm]	88,9
a [mm]	292
e [mm]	232
b [mm]	78
S1 [mm]	25
S2 [mm]	28
g [mm]	30
W [mm]	174
Bi [mm]	82,6
n [mm]	33,3
Śruba	M20
Uwaga	Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Download as PDF

Product description

Zespół łożyskowy typ UCP216

Wymiary zespołu łożyskowego UCP216

d: 80 mm

h: 88,9 mm

a: 292 mm

e: 232 mm

b: 78 mm

S1: 25 mm

S2: 28 mm

g: 30 mm

W: 174 mm

Bi: 82,6 mm

n: 33,3 mm
