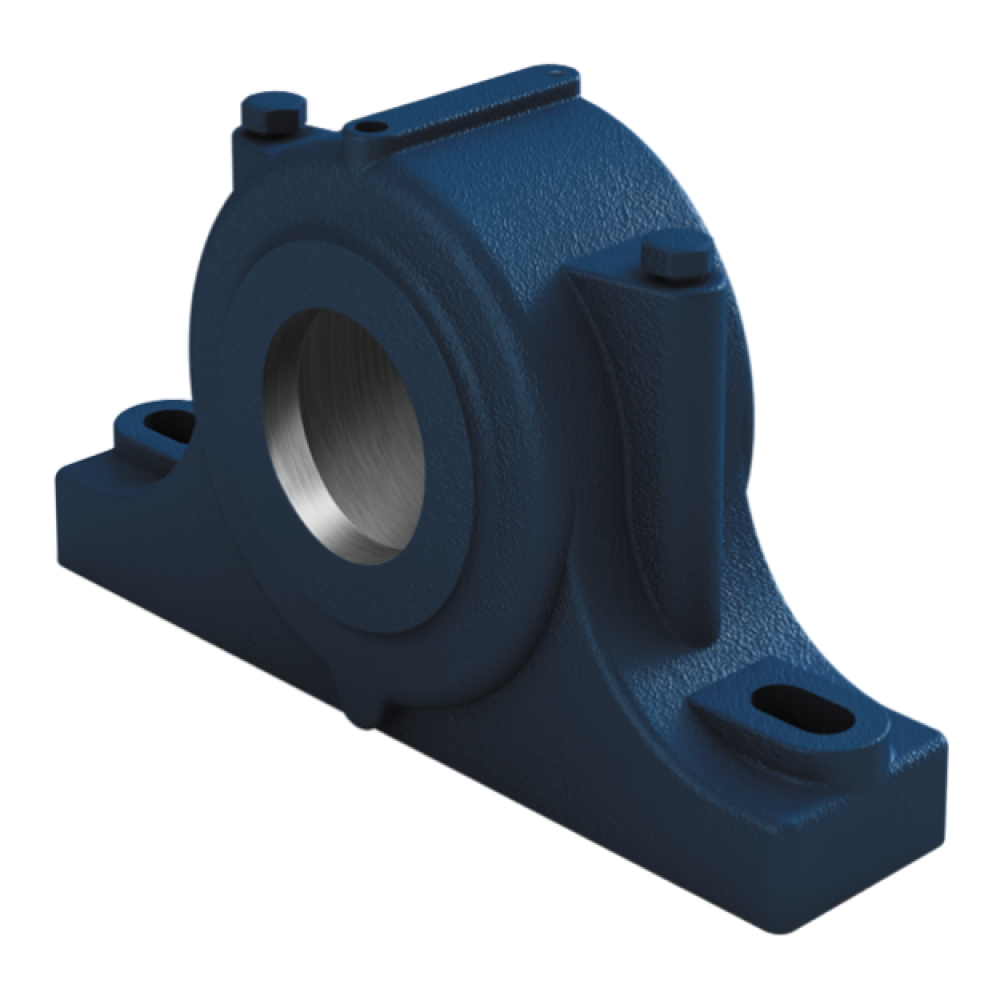

Split Unit SN518

Name: Split Unit SN518
SKU: SN518-MTM

Availability: Available

product code: SN518-MTM

product ean: 5907772138021

d [mm]	80
E [mm]	290
L [mm]	145
D [mm]	160
b [mm]	100
F [mm]	62,4
G [mm]	35
H [mm]	195
u [mm]	22
v [mm]	27
A [mm]	100
B [mm]	345
M [mm]	M16
S [mm]	M20
notes	details - see table - Files to download

Download as PDF
