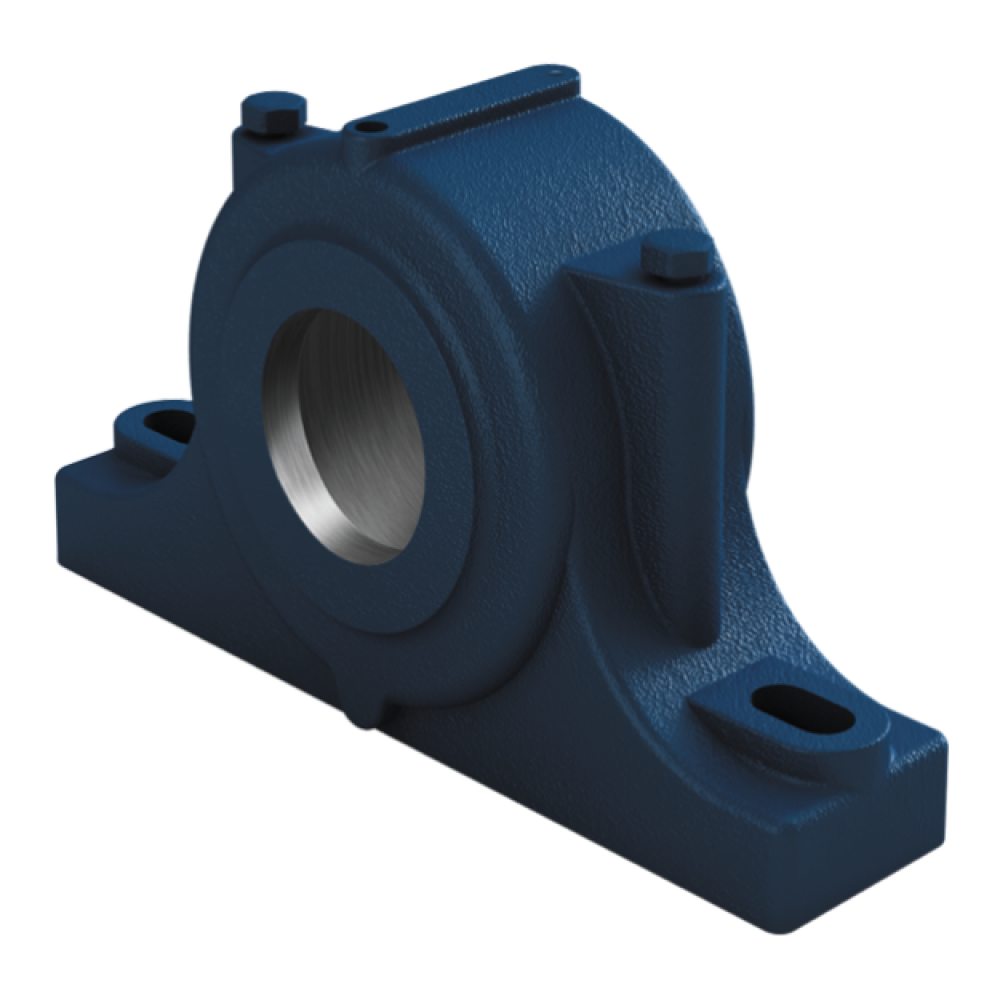

Split Unit SN509

Name: Split Unit SN509
SKU: SN509-MTM

Availability: Available

product code: SN509-MTM

product ean: 5907772137932

d [mm]	40
E [mm]	170
L [mm]	85
D [mm]	85
b [mm]	60
F [mm]	31
G [mm]	25
H [mm]	112
u [mm]	15
v [mm]	20
A [mm]	60
B [mm]	205
M [mm]	M10
S [mm]	M12
notes	details - see table - Files to download

Download as PDF

Split Unit SN522

SN522-MTM

d [mm] - 100

E [mm] - 350

L [mm] - 175

D [mm] - 200

b [mm] - 120

F [mm] - 80

G [mm] - 45

H [mm] - 240

u [mm] - 26

v [mm] - 32

A [mm] - 125

B [mm] - 410

M [mm] - M20

S [mm] - M24

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Split Unit SN518

SN518-MTM

d [mm] - 80

E [mm] - 290

L [mm] - 145

D [mm] - 160

b [mm] - 100

F [mm] - 62,4

G [mm] - 35

H [mm] - 195

u [mm] - 22

v [mm] - 27

A [mm] - 100

B [mm] - 345

M [mm] - M16

S [mm] - M20

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP208

UCP208-MTM

d [mm] - 40

h [mm] - 49,2

a [mm] - 184

e [mm] - 137

b [mm] - 54

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 18

W [mm] - 100

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Split Unit SN511

SN511-MTM

d [mm] - 50

E [mm] - 210

L [mm] - 95

D [mm] - 100

b [mm] - 70

F [mm] - 33

G [mm] - 28

H [mm] - 130

u [mm] - 18

v [mm] - 23

A [mm] - 70

B [mm] - 255

M [mm] - M12

S [mm] - M16

notes - details - see table - Files to download

On order

Product prices will become visible after signing in.

Adapter sleeve H322

H322-MTM

d1 [mm] - 100

d [mm] - 110

D [mm] - 145

B1 [mm] - 77

B2 [mm] - 21

G [mm] - M110 x 2,00

Weight [kg] - 2,050

Nut model - KM 22

Washer model - MB 22

Self-aligning ball bearing model - 13222K / 2222K

Spherical bearing model - 21322K / 22222K

Available

Product prices will become visible after signing in.

Adapter sleeve H309

H309-MTM

d1 [mm] - 40

d [mm] - 45

D [mm] - 65

B1 [mm] - 39

B2 [mm] - 11

G [mm] - M45 x 1,50

Weight [kg] - 0,230

Nut model - KM 09

Washer model - MB 09

Self-aligning ball bearing model - 1309K / 2209K

Spherical bearing model - 21309K / 22209K

Available

Product prices will become visible after signing in.

Adapter sleeve H313

H313-MTM

d1 [mm] - 60

d [mm] - 65

D [mm] - 85

B1 [mm] - 50

B2 [mm] - 14

G [mm] - M65 x 2,00

Weight [kg] - 0,420

Nut model - KM 13

Washer model - MB 13

Self-aligning ball bearing model - 1313K / 2213K

Spherical bearing model - 21313K / 22213K

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Adapter sleeve H311

H311-MTM

d1 [mm] - 50

d [mm] - 55

D [mm] - 75

B1 [mm] - 45

B2 [mm] - 12

G [mm] - M55 x 2,00

Weight [kg] - 0,320

Nut model - KM 11

Washer model - MB 11

Self-aligning ball bearing model - 1311K / 2211K

Spherical bearing model - 21311K / 22211K

Available

Product prices will become visible after signing in.

Split Unit SN524

SN524-MTM

d [mm] - 110

E [mm] - 350

L [mm] - 185

D [mm] - 215

b [mm] - 120

F [mm] - 86

G [mm] - 45

H [mm] - 270

u [mm] - 26

v [mm] - 34

A [mm] - 140

B [mm] - 410

M [mm] - M20

S [mm] - M24

notes - details - see table - Files to download

On order

Product prices will become visible after signing in.

Lock nut KM19

KM19-MTM

d [mm] - 113

D [mm] - 125

B [mm] - 17

G [mm] - M95 x 2,00

m [mm] - 10

n [mm] - 4

Waga [kg] - 0,580

Model podkładki - MB19

Available

Product prices will become visible after signing in.

Retaining ring SEGZ47(100pcs)

SEGZ47(100szt)-MTM

d1 [mm] - 47

d2 [mm] - 44.5

d3 [mm] - 43.5

d5 min [mm] - 2.5

amax [mm] - 6.8

~b [mm] - 4.9

s +/- 4% [mm] - 1.75

m H13 [mm] - 1.85

n min [mm] - 3.8

On order

Product prices will become visible after signing in.
