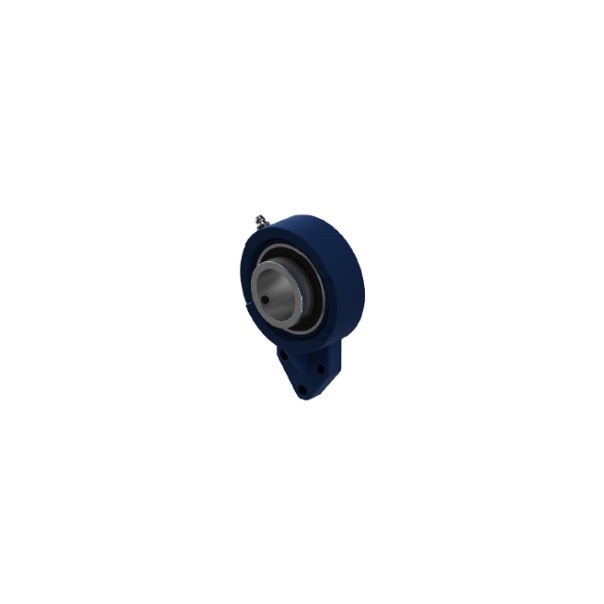

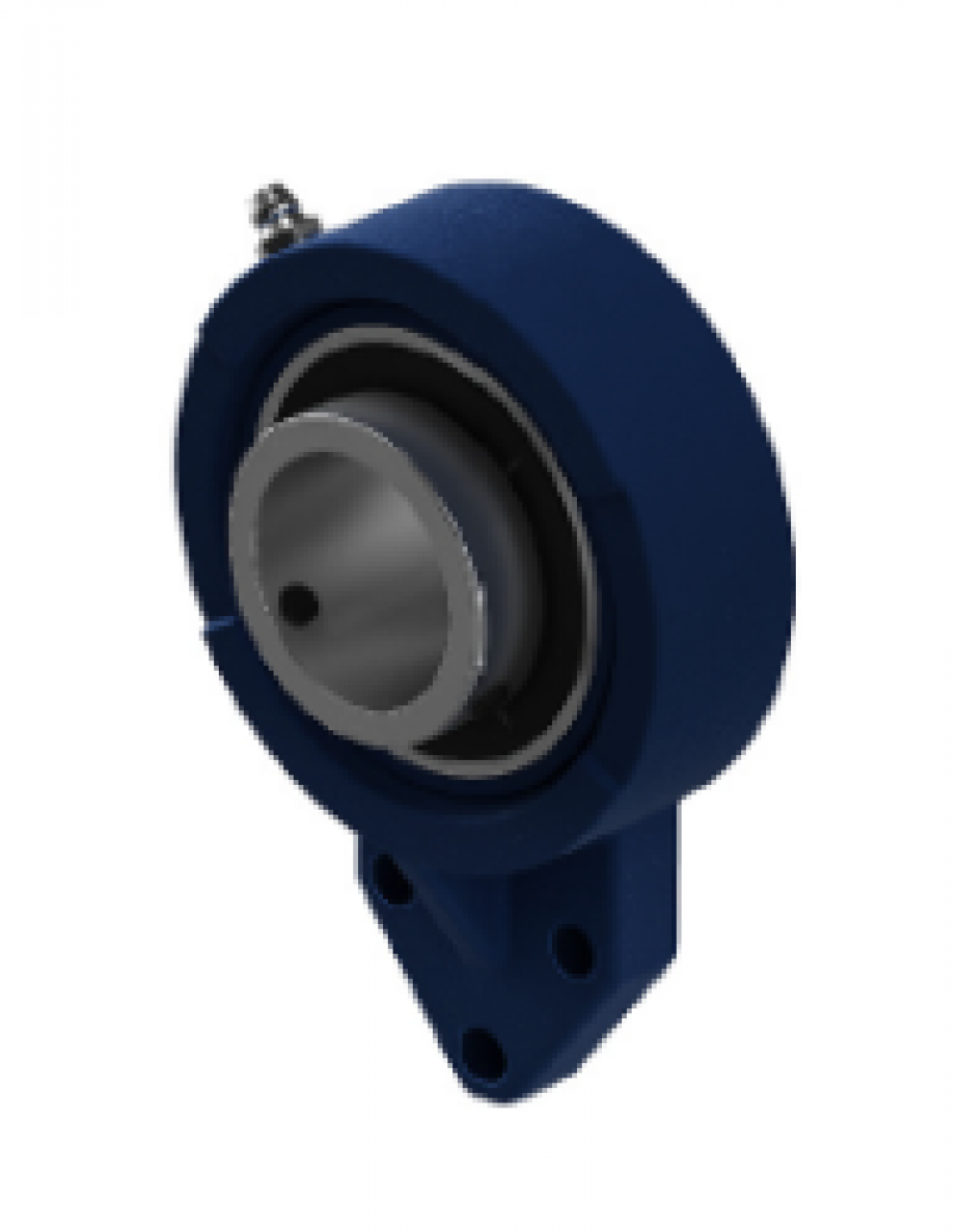

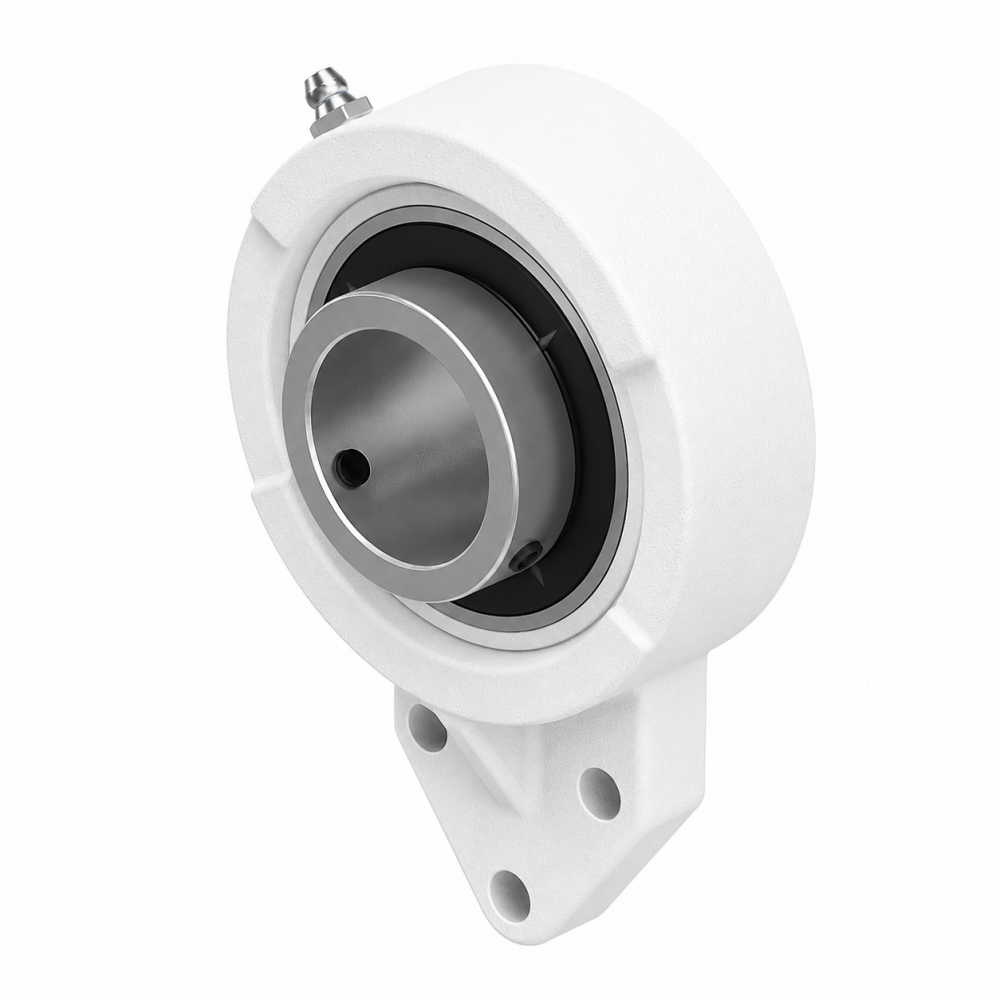

Pillow Block Stainless Steel Thermoplastic SUCFB205-TP

Name: Pillow Block Stainless Steel Thermoplastic SUCFB205-TP
SKU: SUCFB205-TP-MTM

Availability: Available

product code: SUCFB205-TP-MTM

product ean: 5907772138991

Product prices will become visible after signing in.

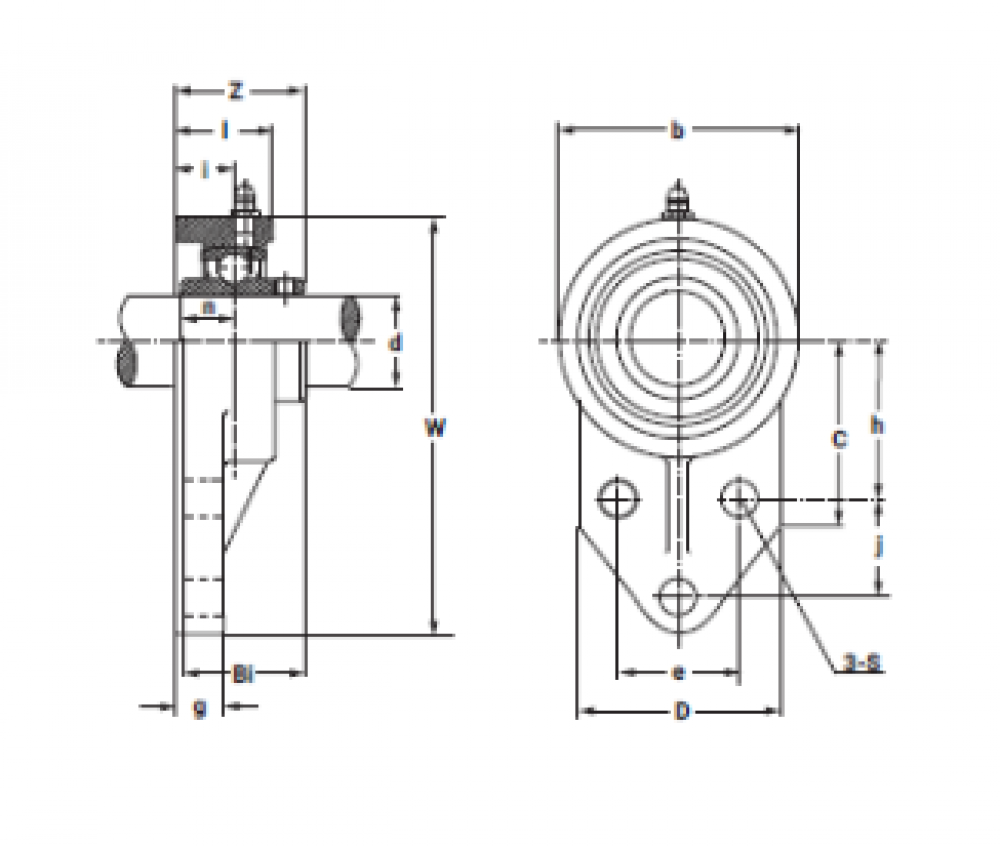

d [mm]	25
W [mm]	116
b [mm]	66
C [mm]	52
D [mm]	56
l [mm]	27
S [mm]	10
g [mm]	13
h [mm]	45
j [mm]	27
e [mm]	34
i [mm]	16
Z [mm]	35,7
Bi [mm]	34
n [mm]	14,3
Bolt	M8

Download as PDF

Stainless Bearing Unit SSUCFL208

SSUCFL208-MTM

d [mm] - 40

a [mm] - 175

e [mm] - 144

i [mm] - 21

g [mm] - 14

l [mm] - 36

S [mm] - 16

b [mm] - 100

z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Śruba - M14

Uwaga - -

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 40-68-7

SIMMERING 40-68-7-MTM

wymiar wewnętrzny [mm] - 40

wymiar zewnętrzny [mm] - 68

wysokość [mm] - 7

Available

Product prices will become visible after signing in.

Ball Bearing 6005 2RSSS

6005-2RSSS-MTM

d [mm] - 25

D [mm] - 47

B [mm] - 12

nośność dynam. [N] - 11200

nośność stat. [N] - 6550

Waga [kg] - 0,080

Available

Product prices will become visible after signing in.

Ball Bearing 6303 2RSC3

6303-2RSC3-MTM

d [mm] - 17

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 13500

load rating stat. [N] - 6550

Weight [kg] - 0,115

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 65-100-10

SIMMERING 65-100-10-MTM

internal dimension [mm] - 65

external dimension [mm] - 100

height [mm] - 10

Available

Product prices will become visible after signing in.

Pillow Block Stainless Steel Thermoplastic SUCFB206-TP

SUCFB206-TP-MTM

d [mm] - 30

W [mm] - 132

b [mm] - 80

C [mm] - 55

D [mm] - 65

l [mm] - 31

S [mm] - 10

g [mm] - 13

h [mm] - 50

j [mm] - 29

e [mm] - 40

i [mm] - 18

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M8

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 20-47-7

SIMMERING 20-47-7-MTM

internal dimension [mm] - 20

external dimension [mm] - 47

height [mm] - 7

Available

Product prices will become visible after signing in.

Pillow Block Stainless Steel SUCFB206

SSUCFB206-MTM

d [mm] - 30

W [mm] - 132

b [mm] - 80

C [mm] - 55

D [mm] - 65

l [mm] - 31,00

S [mm] - 10

g [mm] - 13

h [mm] - 50

j [mm] - 29

e [mm] - 40

i [mm] - 18

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Śruba - M8

Available

Product prices will become visible after signing in.

Stainless Bearing Unit SSUCFL206

SSUCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Śruba - M14

Uwaga - -

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.
