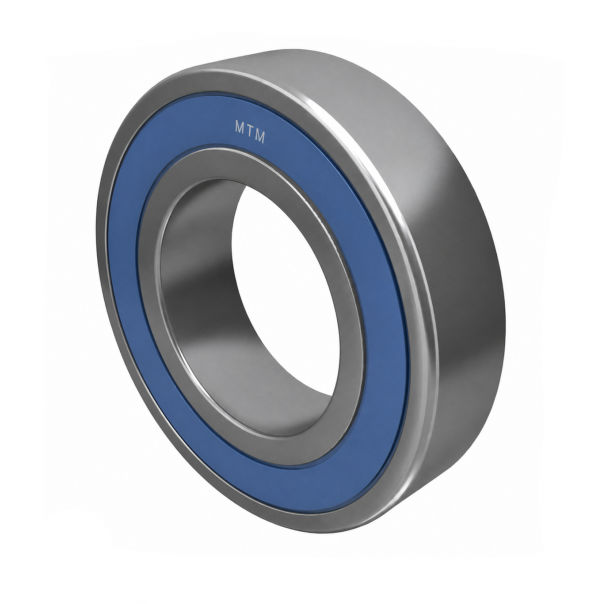

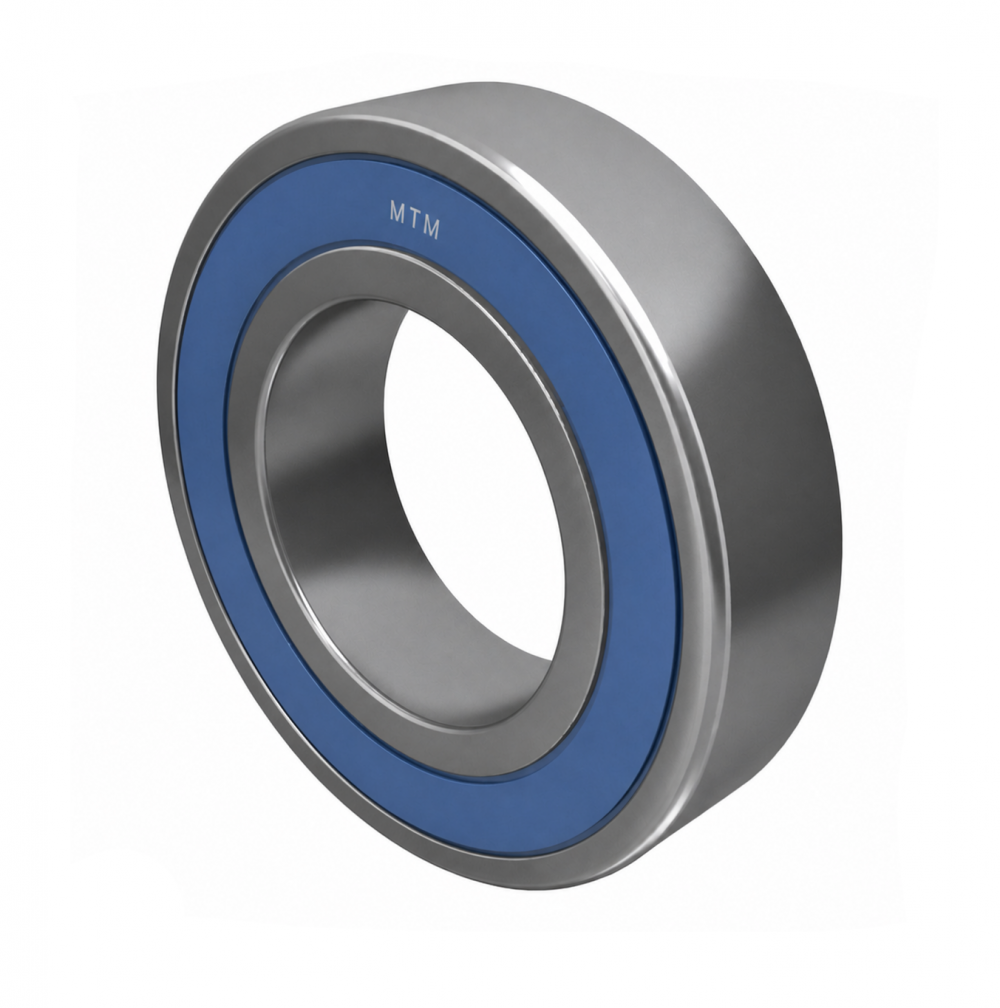

Ball Bearing 6005 2RSSS

Name: Ball Bearing 6005 2RSSS
SKU: 6005-2RSSS-MTM

Availability: Available

product code: 6005-2RSSS-MTM

product ean: 5907772109267

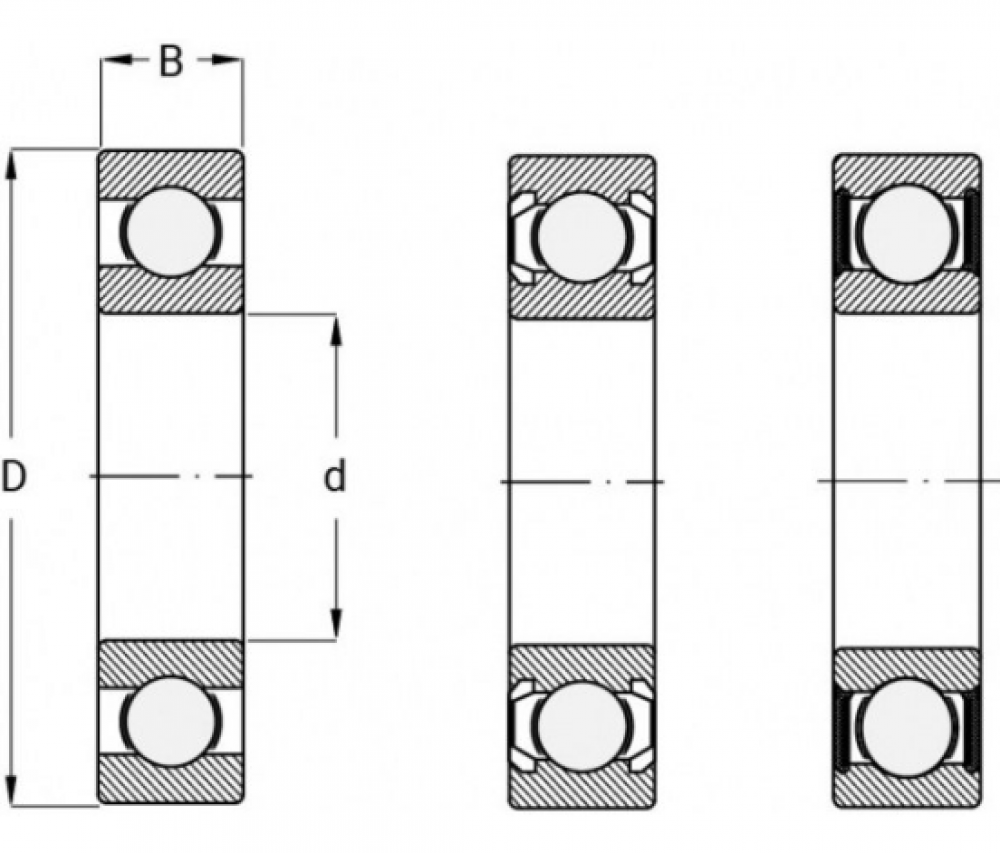

d [mm]	25
D [mm]	47
B [mm]	12
nośność dynam. [N]	11200
nośność stat. [N]	6550
Waga [kg]	0,080

Download as PDF

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6010 2RSSS

6010-2RSSS-MTM

d [mm] - 50

D [mm] - 80

B [mm] - 16

Waga [kg] - 0,261

Available

Product prices will become visible after signing in.

Retaining ring SEGW80

SEGW80-MTM

d1 [mm] - 80

d2 [mm] - 83,5

d3 [mm] - 85,5

d5 min [mm] - 3

amax [mm] - 8,5

~b [mm] - 7

s +/- 4% [mm] - 2,5

m H13 [mm] - 2,65

n min [mm] - 5,3

Available

Product prices will become visible after signing in.

Sliding bush TUP1/20x25

TUP1/20x25-MTM

średnica osi [mm] - 20

otwór [mm] - 23

długość [mm] - 25

uwaga - szczegółowe wymiary - patrz Pliki do pobrania

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 35-65-10

SIMMERING 35-65-10-MTM

wymiar wewnętrzny [mm] - 35

wymiar zewnętrzny [mm] - 65

wysokość [mm] - 10

Available

Product prices will become visible after signing in.

Ball Bearing 6305 2RSSS

6305-2RSSS-MTM

d [mm] - 25

D [mm] - 62

B [mm] - 17

nośność dynam. [N] - 22500

nośność stat. [N] - 11600

Waga [kg] - 0,232

Available

Product prices will become visible after signing in.

Linear Bearings KB2045 UU

KB2045-UU-MTM

d [mm] - 20

D [mm] - 32

B [mm] - 45

W [mm] - 31,2

B1 [mm] - 1,6

D1 [mm] - 30,3

Weight [kg] - 0,0910

load rating dynam. [N] - 1360

load rating stat. [N] - 860

Available

Product prices will become visible after signing in.

Retaining ring SEGW30(100pcs)

SEGW30(100szt)-MTM

d1 [mm] - 30

d2 [mm] - 31,4

d3 [mm] - 32,1

d5 min [mm] - 2

amax [mm] - 4,8

~b [mm] - 3

s +/- 4% [mm] - 1,2

m H13 [mm] - 1,3

n min [mm] - 2,1

Available

Product prices will become visible after signing in.

Oil Seal SIMMERING 40-80-12

SIMMERING 40-80-12-MTM

internal dimension [mm] - 40

external dimension [mm] - 80

height [mm] - 12

Available

Product prices will become visible after signing in.

Sliding bush TUP1/45X40

TUP1/45X40-MTM

średnica osi [mm] - 45

otwór [mm] - 50

długość [mm] - 40

uwaga - szczegółowe wymiary - patrz Pliki do pobrania

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCPA207

UCPA207-MTM

d [mm] - 35

h [mm] - 47,6

a [mm] - 110

e [mm] - 80

b [mm] - 55

t [mm] - M14

r [mm] - 20

g [mm] - 13

W [mm] - 95

Bi [mm] - 42,9

n [mm] - 17,5

Śruba - M14 x 2,00

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Retaining ring SEGZ130

SEGZ130-MTM

d1 [mm] - 130

d2 [mm] - 126

d3 [mm] - 123

d5 min [mm] - 4

amax [mm] - 11.6

~b [mm] - 10.7

s +/- 4% [mm] - 4

m H13 [mm] - 4.15

n min [mm] - 6

Available

Product prices will become visible after signing in.
