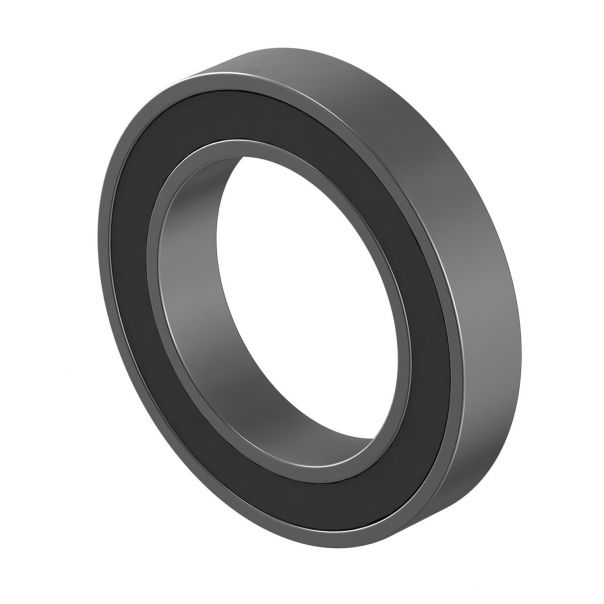

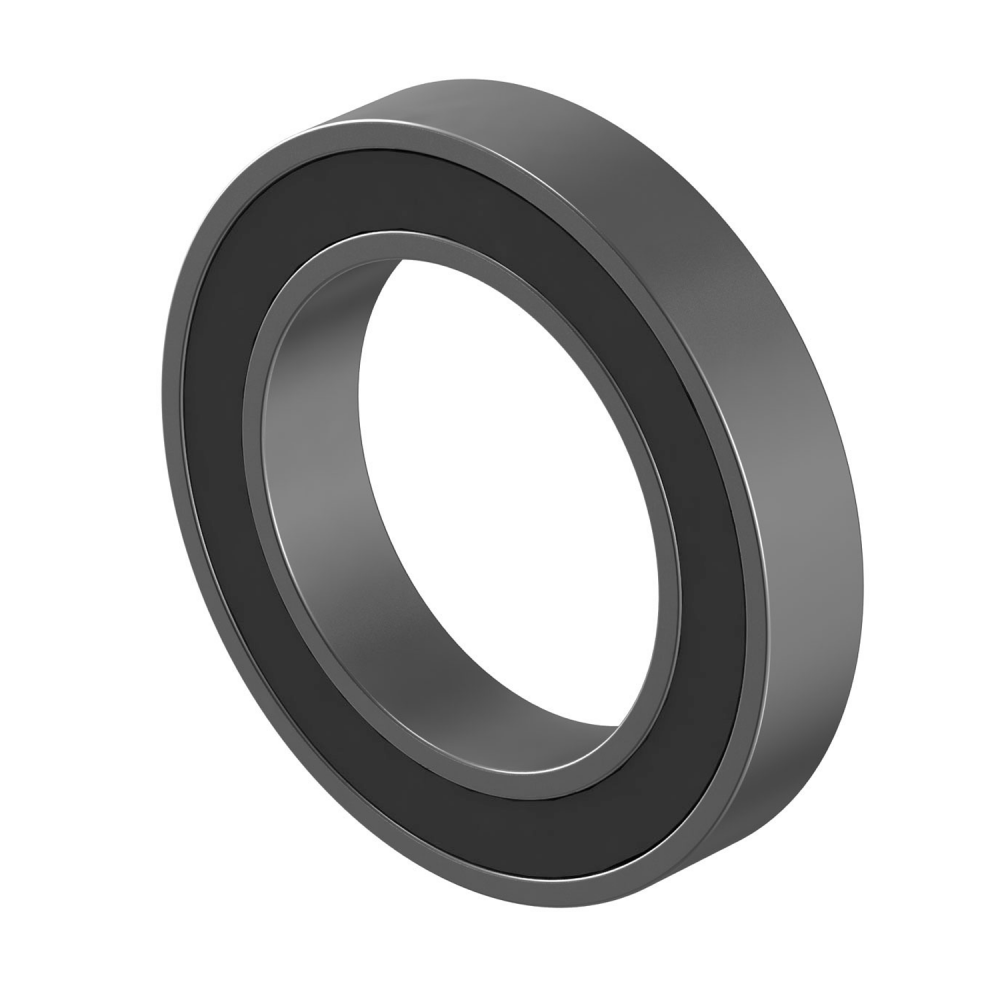

Deep groove ball bearing 61905 2RS

Name: Deep groove ball bearing 61905 2RS
SKU: 61905 (6905)-2RS-MTM

Availability: Available

product code: 61905 (6905)-2RS-MTM

product ean: 5907772112779

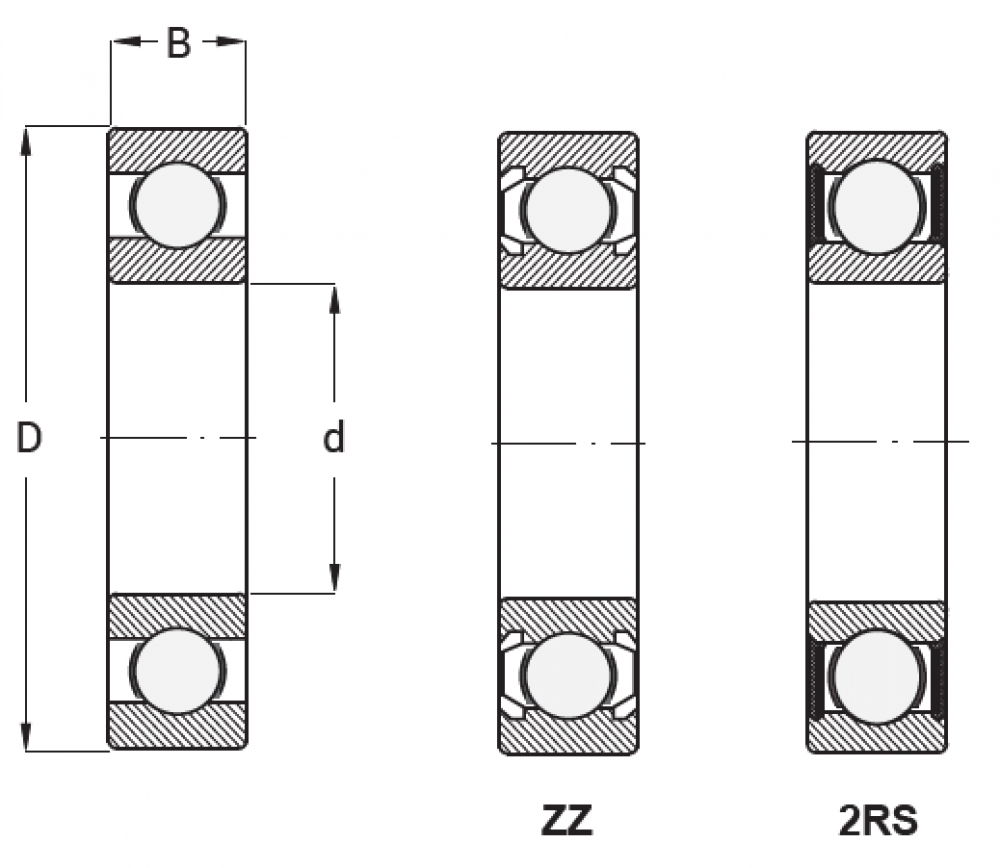

d [mm]	25
D [mm]	42
B [mm]	9
nośność dynam. [N]	6630
nośność stat. [N]	4000
Waga [kg]	0,045

Download as PDF

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Lock nut KM21

KM21-MTM

d [mm] - 126

D [mm] - 140

B [mm] - 18

G [mm] - M105 x 2,00

m [mm] - 12

n [mm] - 5

Waga [kg] - 0,810

Model podkładki - MB21

Available

Product prices will become visible after signing in.

Self aligning ball bearing 2216

2216-MTM

d [mm] - 80

D [mm] - 140

B [mm] - 33

load rating dynam. [N] - 65000

load rating stat. [N] - 25500

Weight [kg] - 2,00

Available

Product prices will become visible after signing in.

Rod End SA25 T/K

SA25-T/K-MTM

D [mm] - 25

B [mm] - 31

M [mm] - 22

A [mm] - 60

F [mm] - 94

L [mm] - 124

O [mm] - 29,6

G [mm] - M24 x 2,00

GL [mm] - 58

Weight [kg] - 0,640

load rating dynam. [N] - 69000

load rating stat. [N] - 85000

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Split Unit SN522

SN522-MTM

d [mm] - 100

E [mm] - 350

L [mm] - 175

D [mm] - 200

b [mm] - 120

F [mm] - 80

G [mm] - 45

H [mm] - 240

u [mm] - 26

v [mm] - 32

A [mm] - 125

B [mm] - 410

M [mm] - M20

S [mm] - M24

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Adapter sleeve H320

H320-MTM

d1 [mm] - 90

d [mm] - 100

D [mm] - 130

B1 [mm] - 71

B2 [mm] - 20

G [mm] - M100 x 2,00

Waga [kg] - 1,600

Model nakrętki - KM 20

Model podkładki - MB 20

Model łożyska kulkowo-wahliwego - 1320K / 2220K

Model łożyska baryłkowego - 21320K / 22220K

Available

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Drawn Cup Needle Roller Bearing HK0608

HK0608-MTM

Fw [mm] - 6

D [mm] - 10

C [mm] - 8

nośność dynam. [N] - 2100

nośność stat. [N] - 1900

Waga [kg] - 0,0019

Available

Product prices will become visible after signing in.

Deep groove stainless ball bearing 61806 2RSSS

61806 (6806)-2RSSS-MTM

d [mm] - 30

D [mm] - 42

B [mm] - 7

nośność dynam. [N] - 4490

nośność stat. [N] - 2900

Waga [kg] - 0,027

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF212

UCF212-MTM

d [mm] - 60

a [mm] - 175

e [mm] - 143

i [mm] - 29

g [mm] - 20

l [mm] - 48

S [mm] - 19

Z [mm] - 68,7

Bi [mm] - 65,1

n [mm] - 25,4

Bolt - M16

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Retaining ring SEGW52(100pcs)

SEGW52(100szt)-MTM

d1 [mm] - 52

d2 [mm] - 55

d3 [mm] - 56,2

d5 min [mm] - 2,5

amax [mm] - 6,7

~b [mm] - 4,7

s +/- 4% [mm] - 2

m H13 [mm] - 2,15

n min [mm] - 4,5

Available

Product prices will become visible after signing in.
