Ball Bearing 618/6 ZZ

Name: Ball Bearing 618/6 ZZ
SKU: 618/6-ZZ-MTM

Availability: On order

product code: 618/6-ZZ-MTM

product ean: 5907772111130

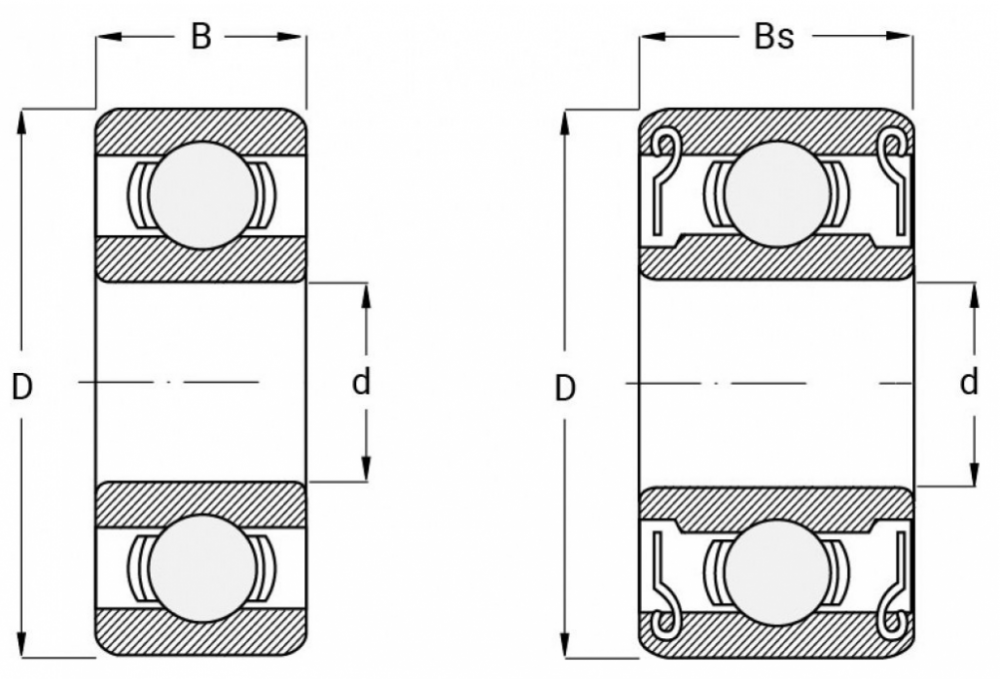

d [mm]	6
D [mm]	13
B [mm]	3,5
Bs [mm]	5,0
nośność dynam. [N]	884
nośność stat. [N]	345
Waga [kg]	0,00191

Download as PDF

Tapered Roller Bearing 30221

30221-MTM

d [mm] - 105

D [mm] - 190

T [mm] - 39

Waga [kg] - 4,250

nośność dynam. [N] - 270000

nośność stat.[N] - 355000

On order

Product prices will become visible after signing in.

Lock nut KM10

KM10-MTM

d [mm] - 61

D [mm] - 70

B [mm] - 11

G [mm] - M50 x 1,50

m [mm] - 6

n [mm] - 2,5

Waga [kg] - 0,140

Model podkładki - MB10

Available

Product prices will become visible after signing in.

Ball Bearing 6304 2RS

6304-2RS-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

nośność dynam. [N] - 15900

nośność stat. [N] - 7800

Waga [kg] - 0,144

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL207

UCFL207-MTM

d [mm] - 35

a [mm] - 161

e [mm] - 130

i [mm] - 19

g [mm] - 14

l [mm] - 34

S [mm] - 16

b [mm] - 90

z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6007 ZZ

6007-ZZ-MTM

d [mm] - 35

D [mm] - 62

B [mm] - 14

nośność dynam. [N] - 15900

nośność stat. [N] - 10200

Waga [kg] - 0,155

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210

UCF210-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF207

UCF207-MTM

d [mm] - 35

a [mm] - 117

e [mm] - 92

i [mm] - 19

g [mm] - 16

l [mm] - 34

S [mm] - 14

Z [mm] - 44,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M12

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6006 2RSC3

6006-2RSC3-MTM

d [mm] - 30

D [mm] - 55

B [mm] - 13

nośność dynam. [N] - 13300

nośność stat. [N] - 8300

Waga [kg] - 0,116

On order

Product prices will become visible after signing in.

Insert ball bearing UC210

UC210-MTM

d [mm] - 50

D [mm] - 90

Bi [mm] - 51,6

Be [mm] - 23

r [mm] - 2

n [mm] - 19

m [mm] - 32,6

G [mm] - 9

ds [mm] - M10 x 1,25

T [mm] - 6,5

W [mm] - 63

nośność dynam. [N] - 27000

nośność stat. [N] - 19800

Waga [kg] - 0,78

Available

Product prices will become visible after signing in.

Insert ball bearing UC204

UC204-MTM

d [mm] - 20

D [mm] - 47

Bi [mm] - 31

Be [mm] - 17

r [mm] - 1,5

n [mm] - 12,7

m [mm] - 18,3

G [mm] - 4,5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 29

load rating dynam. [N] - 9880

load rating stat. [N] - 6180

Weight [kg] - 0,16

Available

Product prices will become visible after signing in.
