Ball Bearing 635 ZZ

Name: Ball Bearing 635 ZZ
SKU: 635-ZZ-MTM

Availability: Available

product code: 635-ZZ-MTM

product ean: 5907772117309

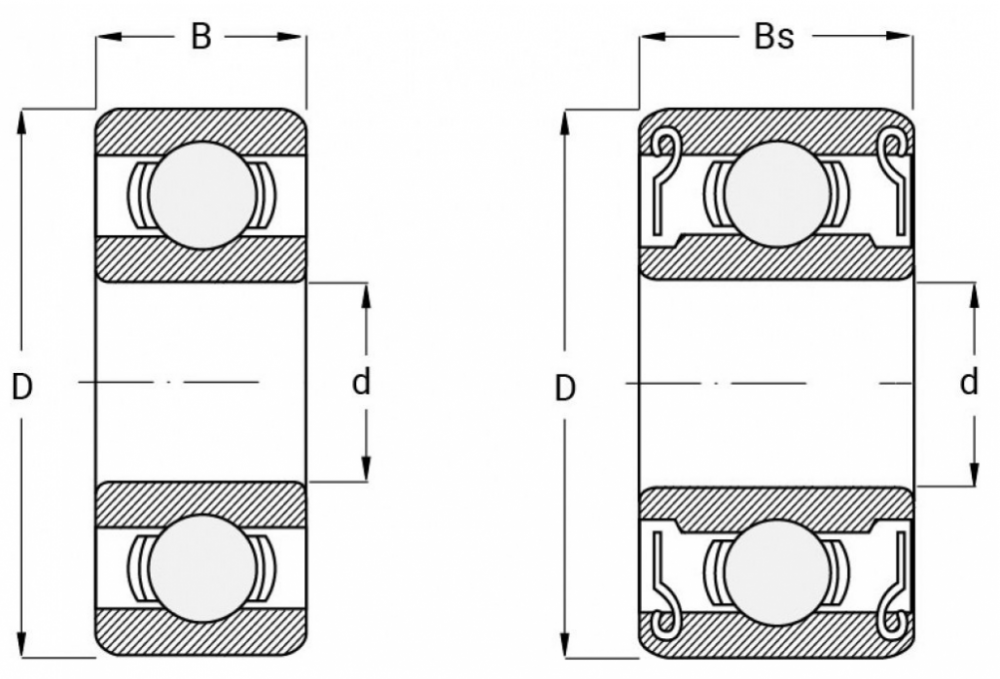

d [mm]	5
D [mm]	19
B [mm]	6,0
Bs [mm]	6,0
load rating dynam. [N]	1720
load rating stat. [N]	620
Weight [kg]	0,00800

Download as PDF

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Small ball bearing 608 ZZ

608-ZZ-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

On order

Product prices will become visible after signing in.

Lock nut KM04

KM04-MTM

d [mm] - 26

D [mm] - 32

B [mm] - 6

G [mm] - M20 x 1,00

m [mm] - 4

n [mm] - 2

Weight [kg] - 0,020

Washer model - MB04

Available

Product prices will become visible after signing in.

Lock washer MB06

MB06-MTM

d [mm] - 30

D1 [mm] - 38

D [mm] - 49

S [mm] - 1,25

E [mm] - 5

F [mm] - 27,5

B [mm] - 5

Weight [kg] - 0,00780

Available

Product prices will become visible after signing in.

Split Unit SN513

SN513-MTM

d [mm] - 60

E [mm] - 230

L [mm] - 110

D [mm] - 120

b [mm] - 80

F [mm] - 43

G [mm] - 30

H [mm] - 150

u [mm] - 18

v [mm] - 23

A [mm] - 80

B [mm] - 275

M [mm] - M12

S [mm] - M16

notes - details - see table - Files to download

Available

Product prices will become visible after signing in.

Split Unit SN518

SN518-MTM

d [mm] - 80

E [mm] - 290

L [mm] - 145

D [mm] - 160

b [mm] - 100

F [mm] - 62,4

G [mm] - 35

H [mm] - 195

u [mm] - 22

v [mm] - 27

A [mm] - 100

B [mm] - 345

M [mm] - M16

S [mm] - M20

uwaga - szczegółowe informacje - patrz Pliki do pobrania

Available

Product prices will become visible after signing in.

Lock washer MB08

MB08-MTM

d [mm] - 40

D1 [mm] - 50

D [mm] - 62

S [mm] - 1,25

E [mm] - 6

F [mm] - 37,5

B [mm] - 6

Waga [kg] - 0,01230

On order

Product prices will become visible after signing in.

Lock washer MB01

MB01-MTM

d [mm] - 12

D1 [mm] - 17

D [mm] - 25

S [mm] - 1

E [mm] - 3

F [mm] - 10,5

B [mm] - 3

Weight [kg] - 0,00192

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Śruba - M10

Uwaga - Na zamówienie oferujemy oprawy w wersji TS (z potrójnym uszczelnieniem)

Available

Product prices will become visible after signing in.

Split Unit SN508

SN508-MTM

d [mm] - 35

E [mm] - 170

L [mm] - 85

D [mm] - 80

b [mm] - 60

F [mm] - 33

G [mm] - 25

H [mm] - 110

u [mm] - 15

v [mm] - 20

A [mm] - 60

B [mm] - 205

M [mm] - M10

S [mm] - M12

uwaga - szczegółowe informacje - patrz Pliki do pobrania

Available

Product prices will become visible after signing in.

Spherical plain bearing GE025 ES

GE025-ES-MTM

d [mm] - 25

D [mm] - 42

B [mm] - 20

C [mm] - 16

dk [mm] - 35.5

Waga [kg] - 0.115

nośność dynam. [N] - 48000

nośność stat. [N] - 240000

Available

Product prices will become visible after signing in.

Ball Bearing 6201 2RS

6201-2RS-MTM

d [mm] - 12

D [mm] - 32

B [mm] - 10

nośność dynam. [N] - 6890

nośność stat. [N] - 3100

Waga [kg] - 0,037

Available

Product prices will become visible after signing in.
