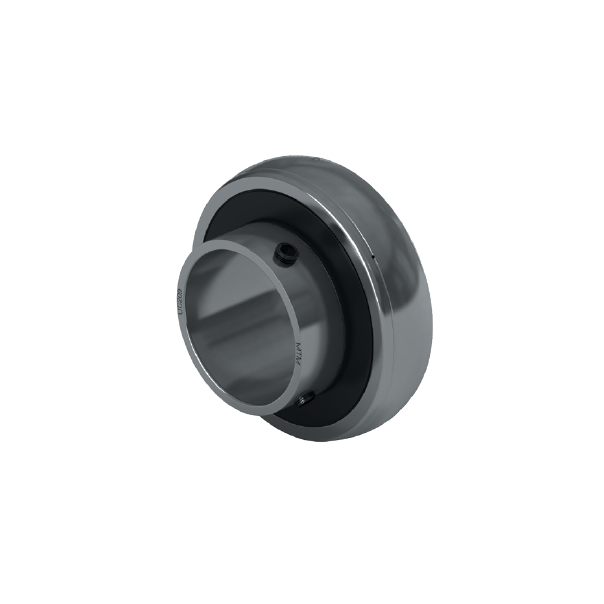

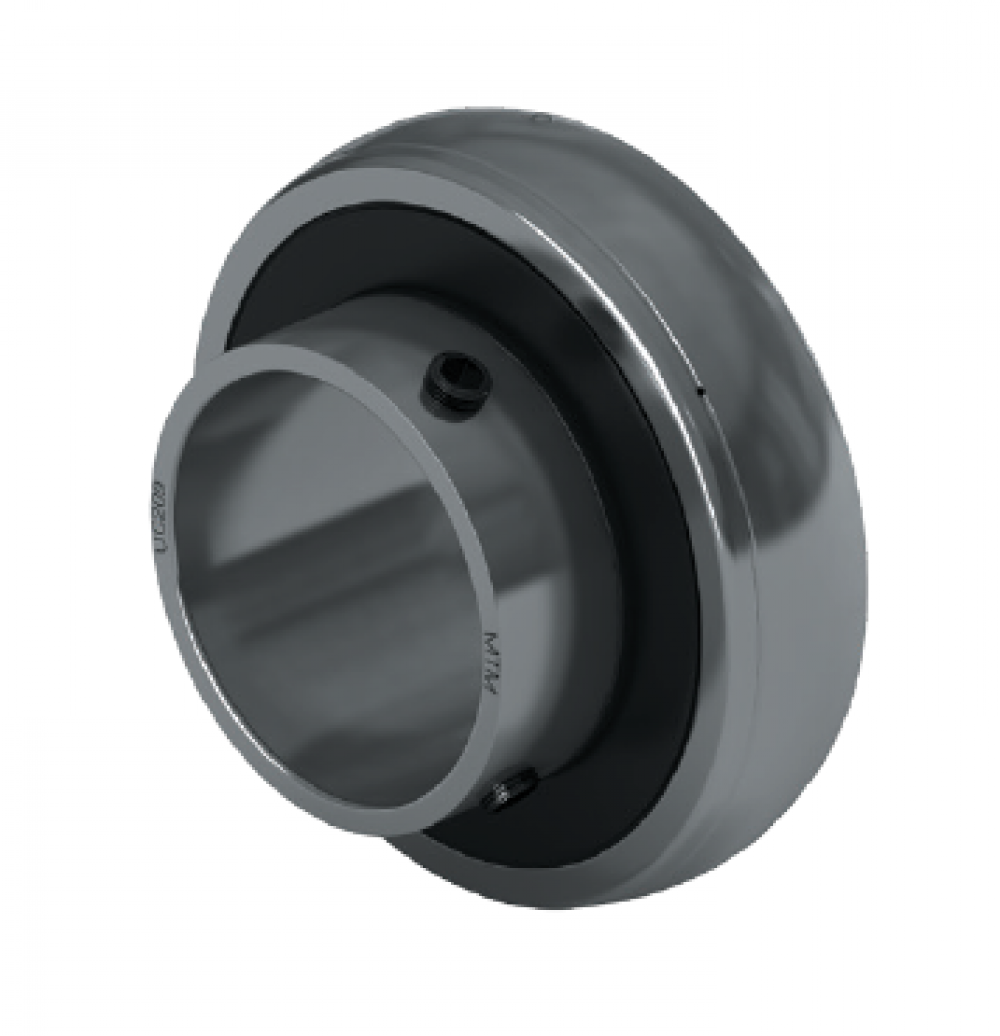

Insert ball bearing UC217

Name: Insert ball bearing UC217
SKU: UC217-MTM

Availability: Available

product code: UC217-MTM

product ean: 5907772141229

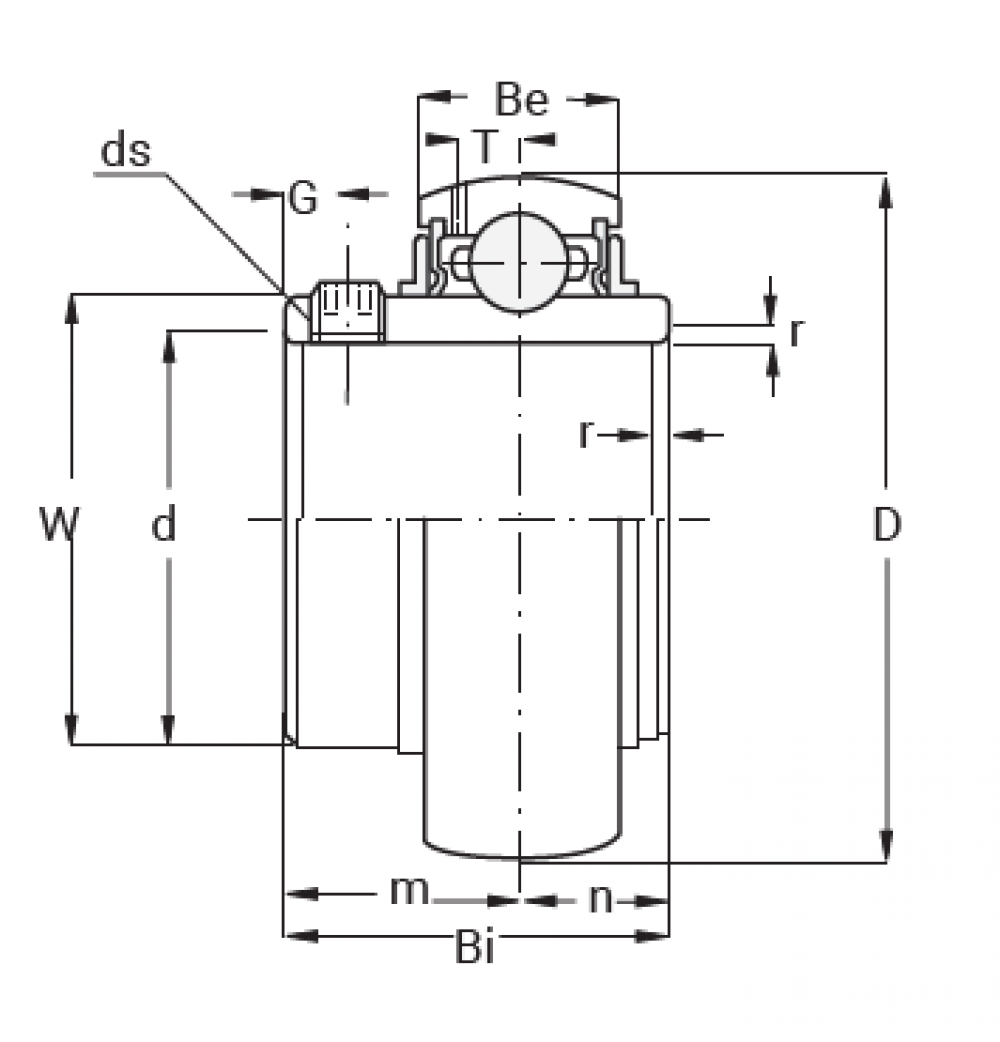

d [mm]	85
D [mm]	150
Bi [mm]	85,7
Be [mm]	34
r [mm]	3
n [mm]	34,1
m [mm]	51,6
G [mm]	12
ds [mm]	M12 x 1,50
T [mm]	11
W [mm]	105
load rating dynam. [N]	64000
load rating stat. [N]	53200
Weight [kg]	3,38

Download as PDF
