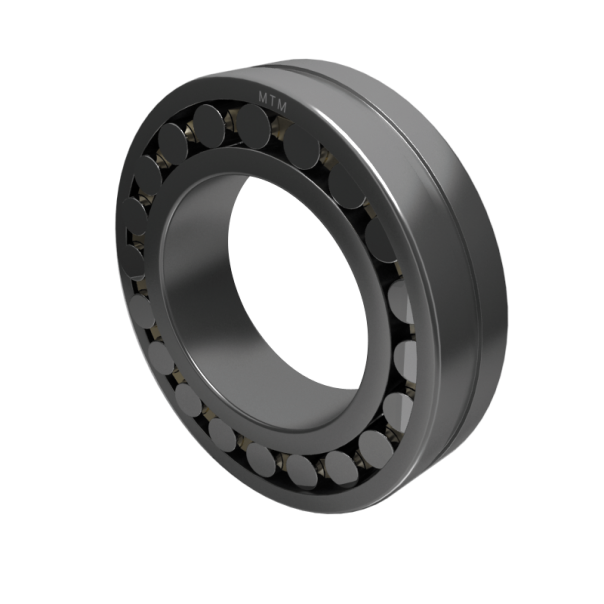

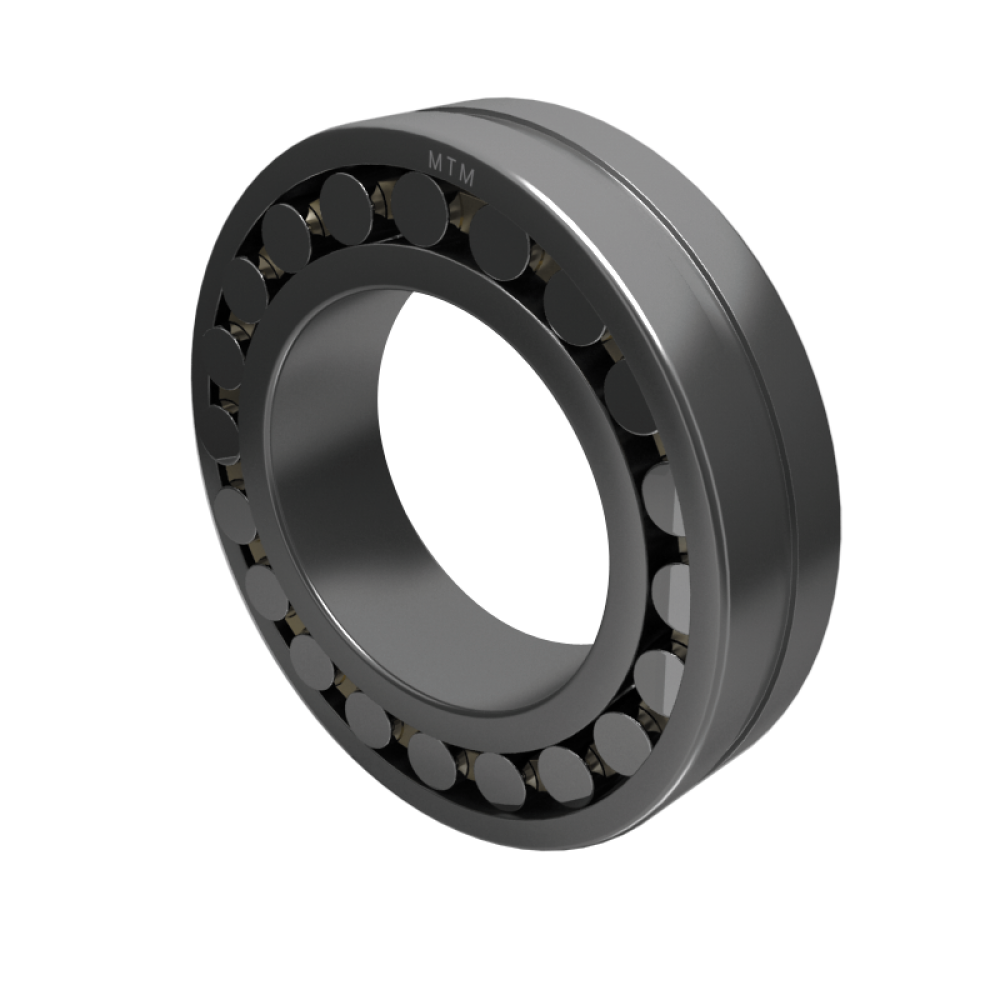

Spherical roller bearings 22316 CW33

Name: Spherical roller bearings 22316 CW33
SKU: 22316-CW33-MTM

Availability: Available

product code: 22316-CW33-MTM

product ean: 5907772103487

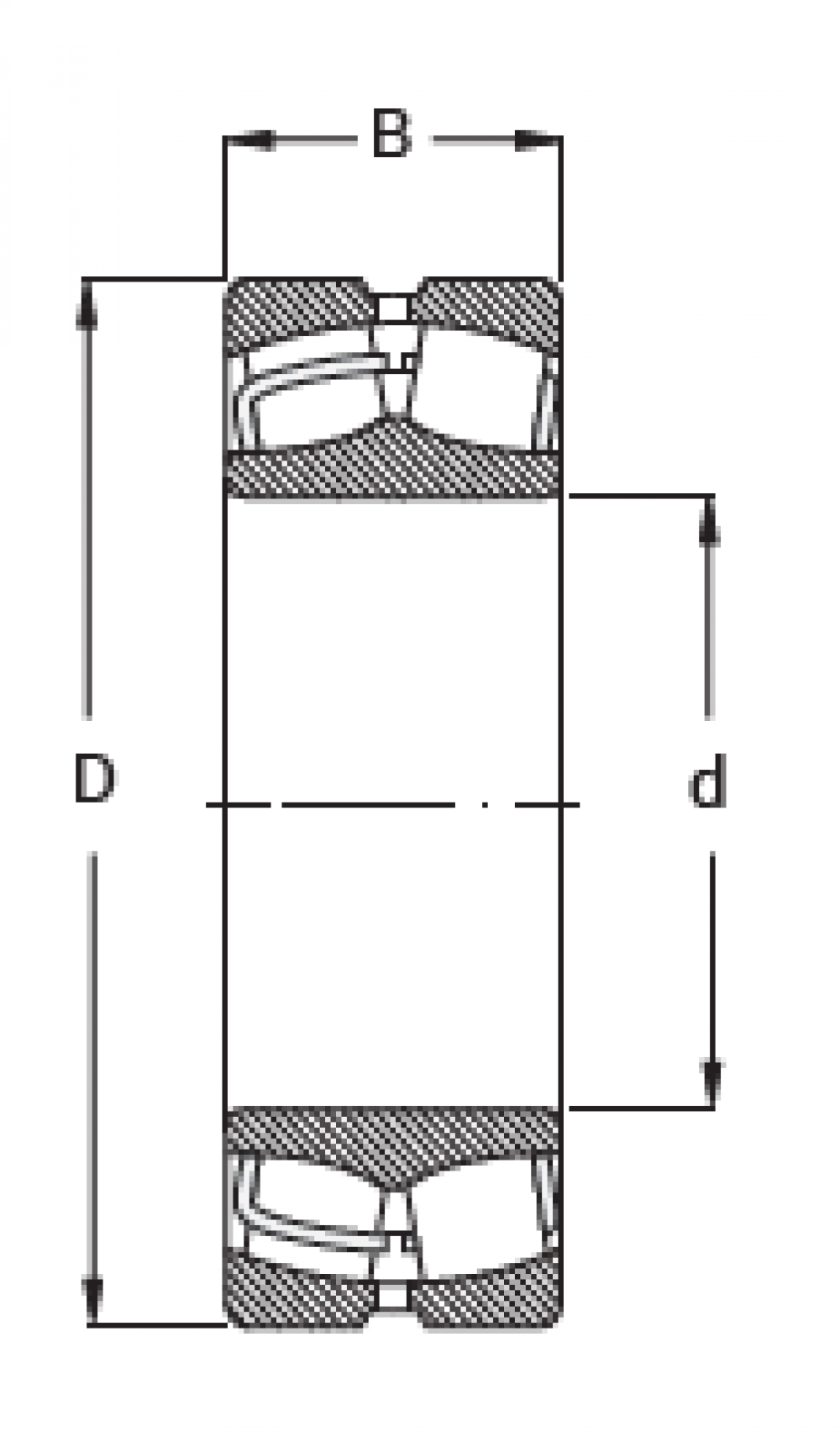

d [mm]	80
D [mm]	170
B [mm]	58
nośność dynam. [N]	374000
nośność stat. [N]	455000
Waga [kg]	6,20

Download as PDF

Pillow Block Bearing UCFC216

UCFC216-MTM

d [mm] - 80

a [mm] - 240

p [mm] - 200

e [mm] - 141,4

i [mm] - 18

S [mm] - 23

j [mm] - 16

k [mm] - 18

g [mm] - 42

f [mm] - 170

z [mm] - 67,3

Bi [mm] - 82,6

n [mm] - 33,3

Bolt - M20

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Adapter sleeve H310

H310-MTM

d1 [mm] - 45

d [mm] - 50

D [mm] - 70

B1 [mm] - 42

B2 [mm] - 12

G [mm] - M50 x 1,50

Waga [kg] - 0,270

Model nakrętki - KM 10

Model podkładki - MB 10

Model łożyska kulkowo-wahliwego - 1310K / 2210K

Model łożyska baryłkowego - 21310K / 22210K

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL202

UCFL202-MTM

d [mm] - 15

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Insert ball bearing UC206

UC206-MTM

d [mm] - 30

D [mm] - 62

Bi [mm] - 38,1

Be [mm] - 19

r [mm] - 1,5

n [mm] - 15,9

m [mm] - 22,2

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 5,1

W [mm] - 40,5

load rating dynam. [N] - 15000

load rating stat. [N] - 10000

Weight [kg] - 0,31

Available

Product prices will become visible after signing in.

Insert ball bearing UC205

UC205-MTM

d [mm] - 25

D [mm] - 52

Bi [mm] - 34

Be [mm] - 17

r [mm] - 1,5

n [mm] - 14,3

m [mm] - 19,7

G [mm] - 5

ds [mm] - M6 x 0,75

T [mm] - 4,5

W [mm] - 34

load rating dynam. [N] - 10800

load rating stat. [N] - 6950

Weight [kg] - 0,19

Available

Product prices will become visible after signing in.

Ball Bearing 6312

6312-MTM

d [mm] - 60

D [mm] - 130

B [mm] - 31

nośność dynam. [N] - 81900

nośność stat. [N] - 52000

Waga [kg] - 1.700

Available

Product prices will become visible after signing in.

Lock nut KM15

KM15-MTM

d [mm] - 90

D [mm] - 98

B [mm] - 13

G [mm] - M75 x 2,00

m [mm] - 8

n [mm] - 3,5

Weight [kg] - 0,270

Washer model - MB15

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF209

UCF209-MTM

d [mm] - 45

a [mm] - 137

e [mm] - 105

i [mm] - 22

g [mm] - 18

l [mm] - 38

S [mm] - 16

Z [mm] - 52,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61906 2RS

61906 (6906)-2RS-MTM

d [mm] - 30

D [mm] - 47

B [mm] - 9

nośność dynam. [N] - 7280

nośność stat. [N] - 4550

Waga [kg] - 0,051

Available

Product prices will become visible after signing in.

Spherical roller bearings 22216 MW33

22216-MW33-MTM

d [mm] - 80

D [mm] - 140

B [mm] - 33

nośność dynam. [N] - 176000

nośność stat. [N] - 228000

Waga [kg] - 2,05

Available

Product prices will become visible after signing in.

Deep groove ball bearing 61905 2RS

61905 (6905)-2RS-MTM

d [mm] - 25

D [mm] - 42

B [mm] - 9

nośność dynam. [N] - 6630

nośność stat. [N] - 4000

Waga [kg] - 0,045

Available

Product prices will become visible after signing in.

Spherical plain bearing GEG20 2RS

GEG20-ES2RS-MTM

d [mm] - 20

D [mm] - 42

B [mm] - 25

C [mm] - 16

dk [mm] - 35.5

Waga [kg] - 0.152

nośność dynam. [N] - 48000

nośność stat. [N] - 24000

Available

Product prices will become visible after signing in.
