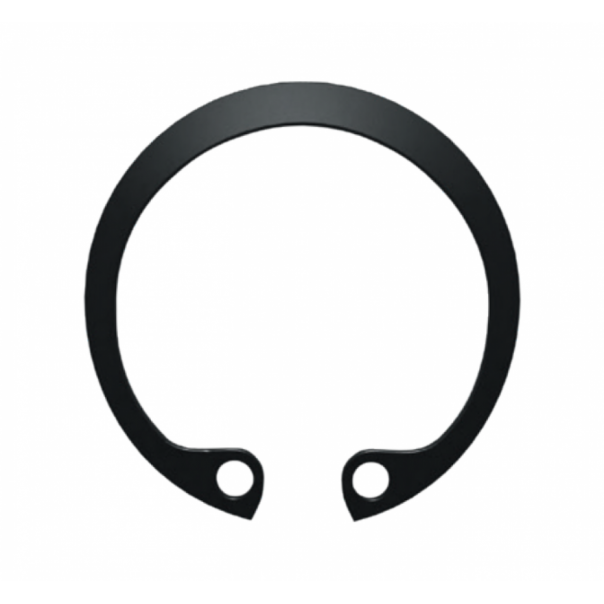

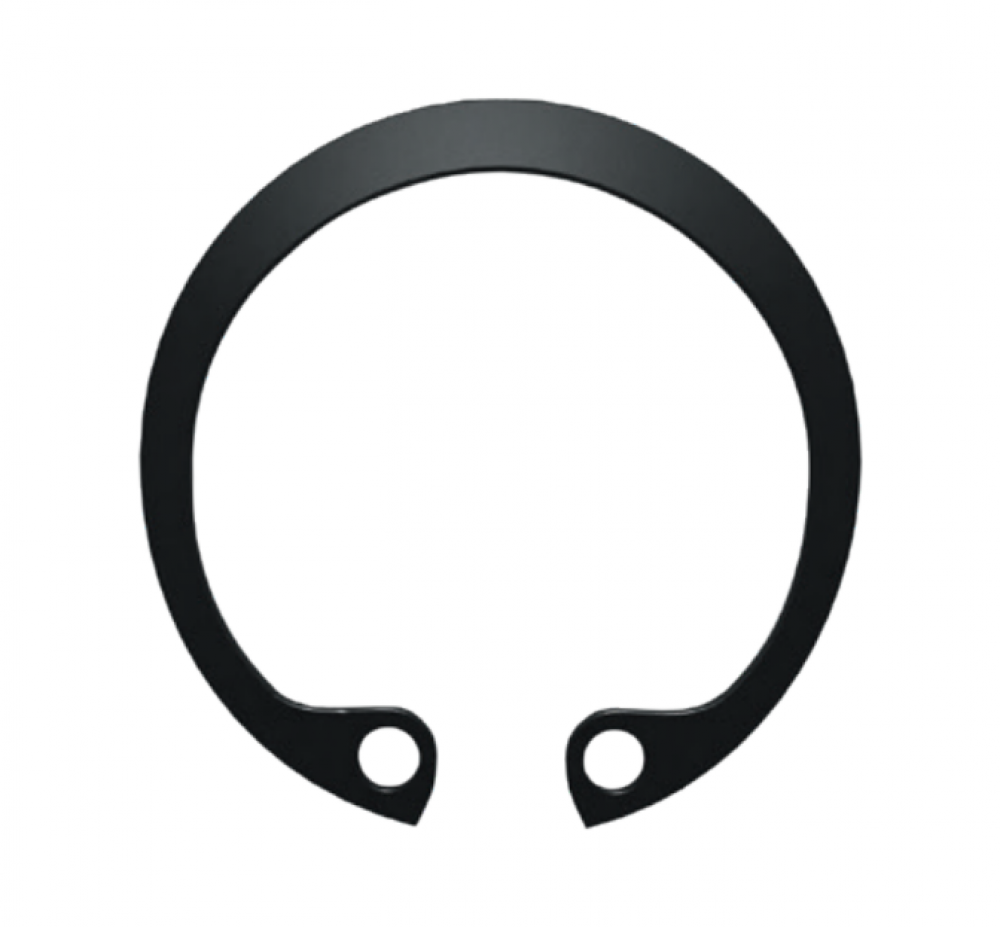

Retaining ring SEGW65(100pcs)

Name: Retaining ring SEGW65(100pcs)
SKU: SEGW65(100szt)-MTM

Availability: Available

product code: SEGW65(100szt)-MTM

product ean: 5907772147412

d1 [mm]	65
d2 [mm]	68
d3 [mm]	69.2
d5 min [mm]	3
amax [mm]	7.6
~b [mm]	5.8
s +/- 4% [mm]	2.5
m H13 [mm]	2.65
n min [mm]	4.5

Download as PDF
