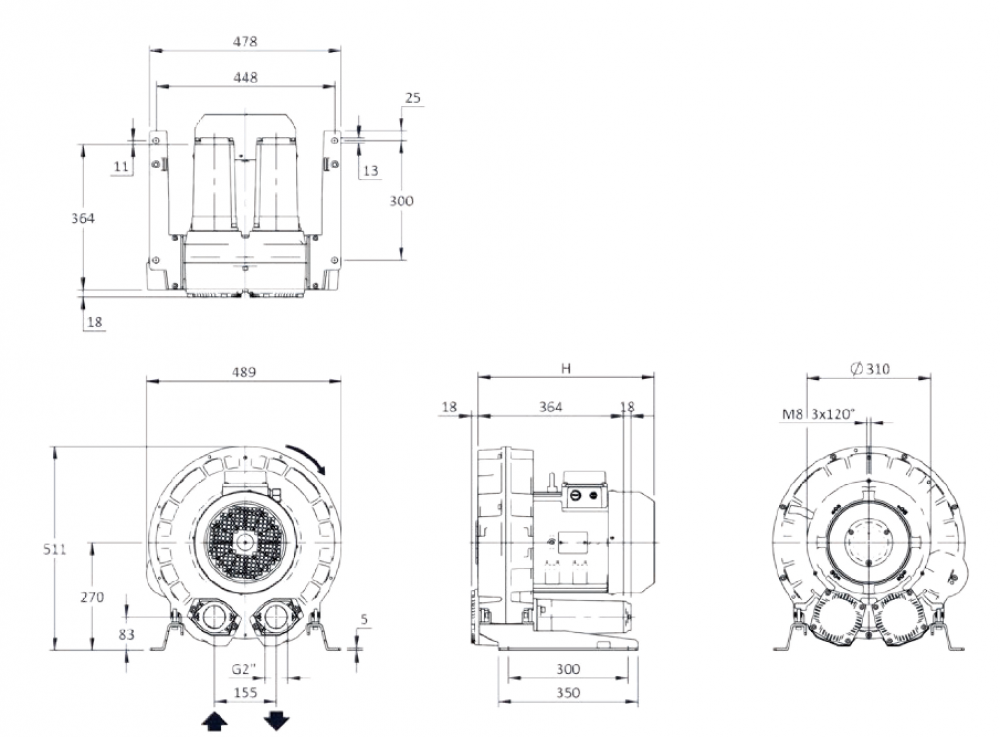

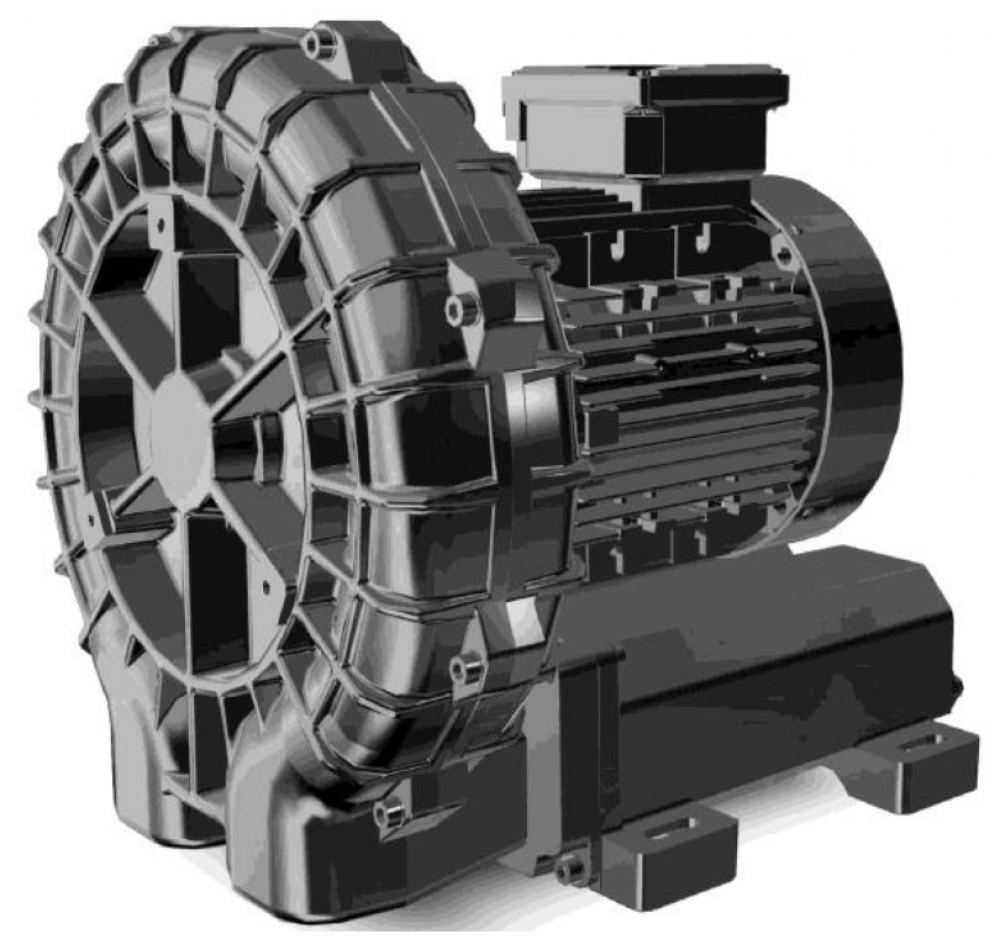

Double Stage Single Impeller Sidechannel Blower SCL e08MD, IE3 - 3 Phase Motor, 4-4,8 kW

Availability: On order

product code: SE08MD50+0004

Power [kW]	4
Power supply [V/Hz]	50
Speed [rpm]	2910
Flow rate [m3/h]	255
Suction [mbar]	400
Compression [mbar]	350
Noise level [dB(A)]	73
Weight [kg]	65
Class	IE3
Protection class [IP]	55
Insulation Class	F

Non-standard bearing 60/22 2RS

60/22-2RS-MTM

d [mm] - 22

D [mm] - 44

B [mm] - 12

load rating dynam. [N] - 10400

load rating stat. [N] - 5050

Weight [kg] - 0,081

On order
