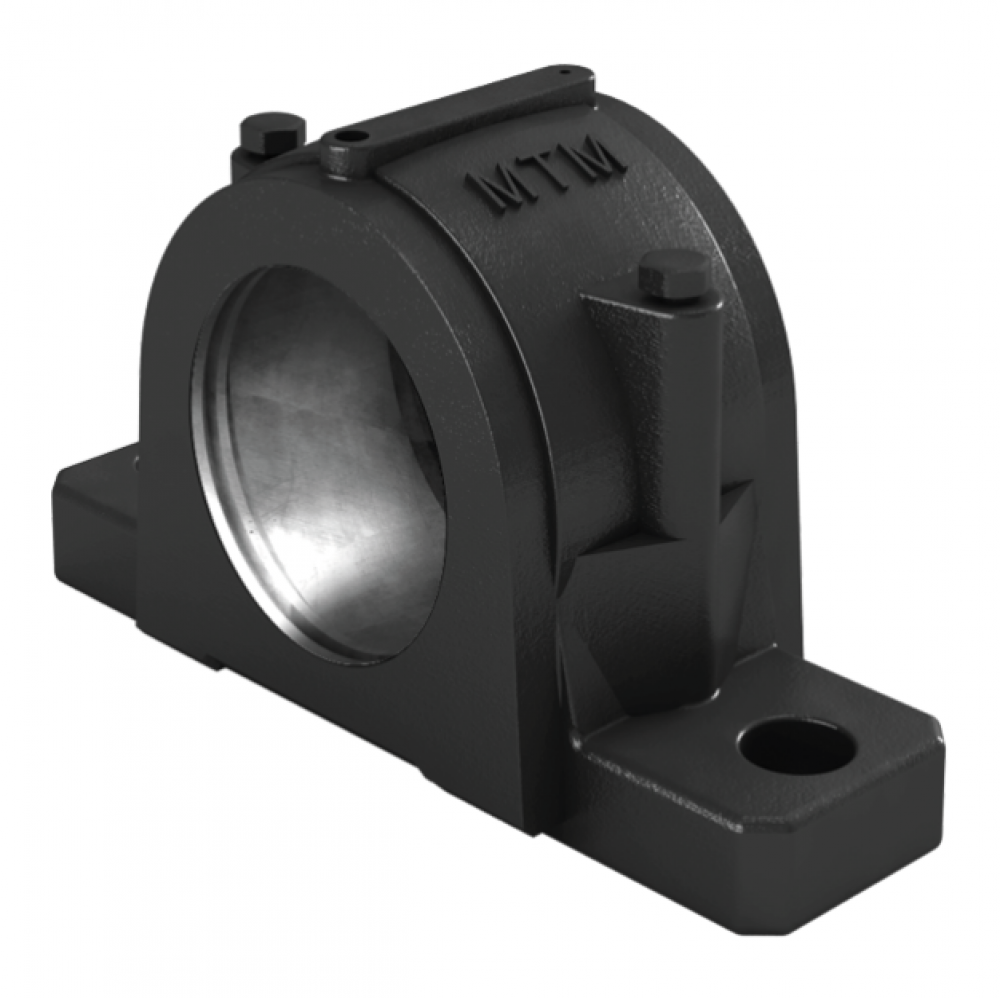

Oprawa łożyskowa dzielona SNH519 TG
Na zamówienie
SNH519-TG-MTM
5907772138281
Parametry techniczne
d [mm] | 85 |
L [mm] | 145 |
D [mm] | 170 |
d2 [mm] | 131 |
d3 [mm] | 141 |
S [mm] | M20 |
f [mm] | 6 |
F [mm] | 68 |
G [mm] | 35 |
H [mm] | 208,5 |
u [mm] | 22 |
v [mm] | 27 |
A [mm] | 112 |
B [mm] | 345 |
b [mm] | 100 |
E [mm] | 290 |
