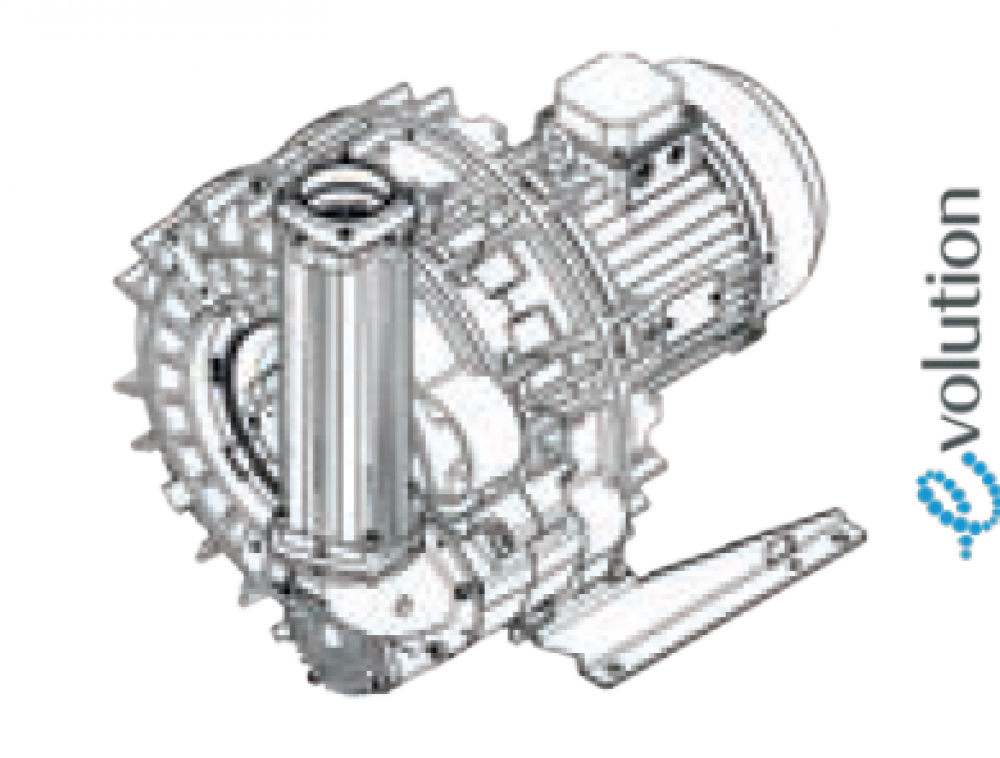

Double Stage Double Impeller Sidechannel Blower SCL e08TD, IE3 - 3 Phase Motor, 9,2-11 kW

Availability: On order

product code: SE08TD50+0001

Power [kW]	9,2
Power supply [V/Hz]	50
Speed [rpm]	2935
Flow rate [m3/h]	577
Suction [mbar]	425
Compression [mbar]	425
Noise level [dB(A)]	77.9
Weight [kg]	118
Class	IE3
Protection class [IP]	55
Insulation Class	F

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request
