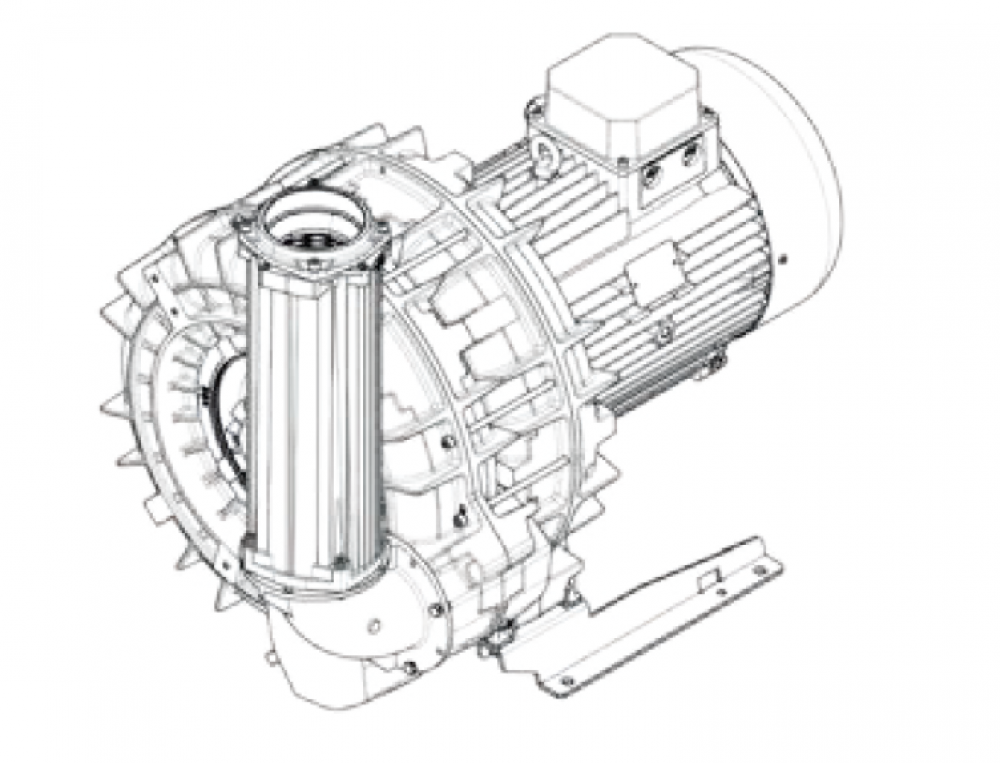

Double Stage Double Impeller Sidechannel Blowers FPZ SCL e09TD, IE3 - 3 Phase Motor, 15-17 kW

Availability: On order

product code: SE09TD50+0001

Power [kW]	15
Power supply [V/Hz]	50
Speed [rpm]	2935
Flow rate [m3/h]	669
Compression [mbar]	600
Noise level [dB(A)]	81
Weight [kg]	153
Class	IE3
Protection class [IP]	55
Insulation Class	F

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request
