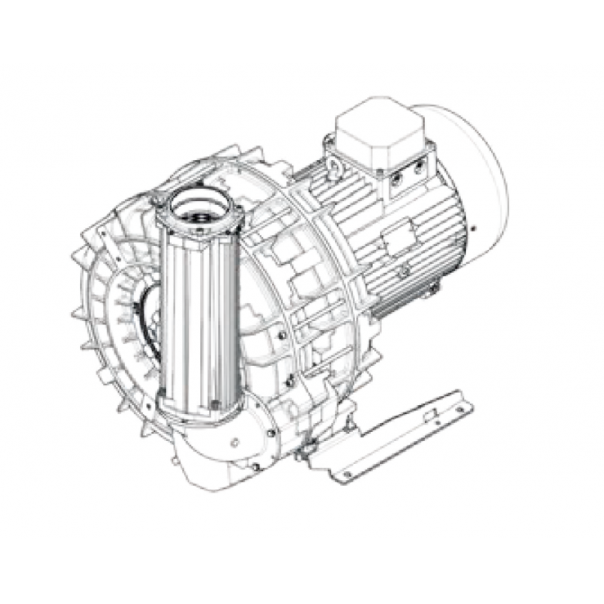

Double Stage Double Impeller Sidechannel Blowers FPZ SCL e10TD, IE3 - 3 Phase Motor, 18,5-22 kW

Availability: On order

product code: SE10TD50+0002

Moc [kW]	18,5
Zasilanie [V/Hz]	50
Prędkość obr. [obr./min]	2950
Wydajność [m3/h]	836
Sprężanie [mbar]	575
Poziom hałasu [dB(A)]	83
Waga [kg]	183
Klasa silnika	IE3
Zabezpieczenie [IP]	55
Izolacja	F
