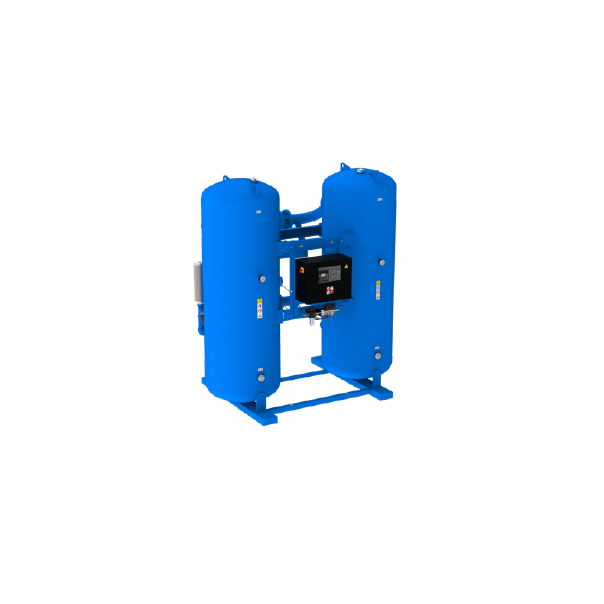

Adsorption Air Dryer HLA200Pro

Availability: On order

product code: HLA200Pro

Air flow [l/min]	3333
Flow rate [m3/h]	200
Ciśnienie [bar]	7
Pressure max [bar]	10
Dewpoint [°C]	-40
Standard complete drying cycle time [min]	10
Regenation air consumption [m3/h]	30
Inlet temp. [⁰C]	35-50
Max. ambient temp. [°C]	46
Min. ambient temp. [°C]	2
Connection [BSP]	1"
Power supply [V/Ph/Hz]	230/1/50-60
Adsorbent	Alumina
Weight [kg]	275
Hight [mm]	1612
Width [mm]	1045
Lenght [mm]	768
