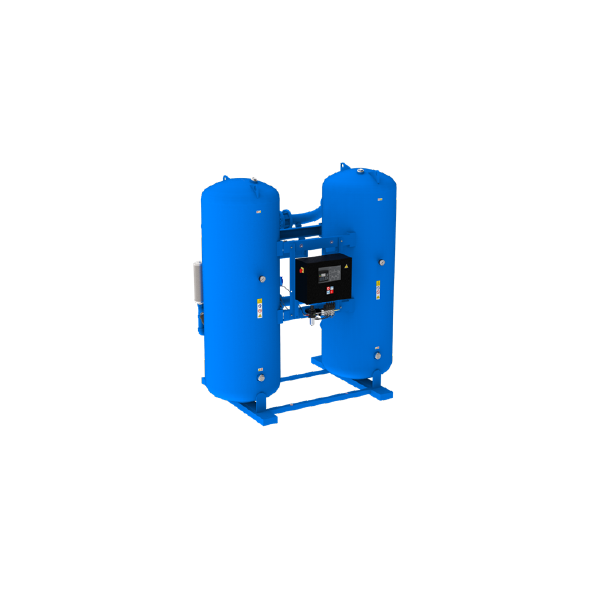

Adsorption Air Dryer HLA3300Pro

Availability: On order

product code: HLA3300Pro

Air flow [l/min]	55000
Flow rate [m3/h]	3300
Ciśnienie [bar]	7
Pressure max [bar]	10
Dewpoint [°C]	-40
Standard complete drying cycle time [min]	10
Regenation air consumption [m3/h]	495
Inlet temp. [⁰C]	35-50
Max. ambient temp. [°C]	46
Min. ambient temp. [°C]	2
Connection [BSP]	DN 100 PN 16
Power supply [V/Ph/Hz]	230/1/50-60
Adsorbent	Alumina
Weight [kg]	2300
Hight [mm]	2349
Width [mm]	2132
Lenght [mm]	1652

Non-standard bearing 60/22 2RS

60/22-2RS-MTM

d [mm] - 22

D [mm] - 44

B [mm] - 12

load rating dynam. [N] - 10400

load rating stat. [N] - 5050

Weight [kg] - 0,081

Available

Product prices will become visible after signing in.

Bearing MR105 2RS

MR105-2RS-MTM

d [mm] - 5

D [mm] - 10

B [mm] - 3

Weight [kg] - 0,001

Available

Product prices will become visible after signing in.

Rod end SA06 T/K

SA06-T/K-MTM

D [mm] - 6

B [mm] - 9

M [mm] - 6,75

A [mm] - 20

F [mm] - 36

L [mm] - 46

O [mm] - 8,9

G [mm] - M6 x 1,00

GL [mm] - 22

Weight [kg] - 0,020

load rating dynam. [N] - 7200

load rating stat. [N] - 7650

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RSC3

6204-2RSC3-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Sliding bush TUF 1 06.070

TUF 1 06.070-MTM

Available

Product prices will become visible after signing in.

Bearing MR126 ZZ

MR126-ZZ-MTM

d [mm] - 6

D [mm] - 12

B [mm] - 3

Weight [kg] - 0,002

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6206 2RS

6206-2RS-MTM

d [mm] - 30

D [mm] - 62

B [mm] - 16

load rating dynam. [N] - 19500

load rating stat. [N] - 11200

Weight [kg] - 0,200

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6304 ZZ

6304-ZZ-MTM

d [mm] - 20

D [mm] - 52

B [mm] - 15

load rating dynam. [N] - 15900

load rating stat. [N] - 7800

Weight [kg] - 0,144

Available

Product prices will become visible after signing in.

Self aligning ball bearing 2201 2RS

2201-2RS-MTM

d [mm] - 12

D [mm] - 32

B [mm] - 14

load rating dynam. [N] - 8520

load rating stat. [N] - 1900

Weight [kg] - 0,051

Available

Product prices will become visible after signing in.

Adapter sleeve H316

H316-MTM

d1 [mm] - 70

d [mm] - 80

D [mm] - 105

B1 [mm] - 59

B2 [mm] - 17

G [mm] - M80 x 2,0

Weight [kg] - 0,950

Nut model - KM 16

Washer model - MB16

Self-aligning ball bearing model - 1316K / 2216K

Spherical bearing model - 21316K / 22216K

Available

Product prices will become visible after signing in.
