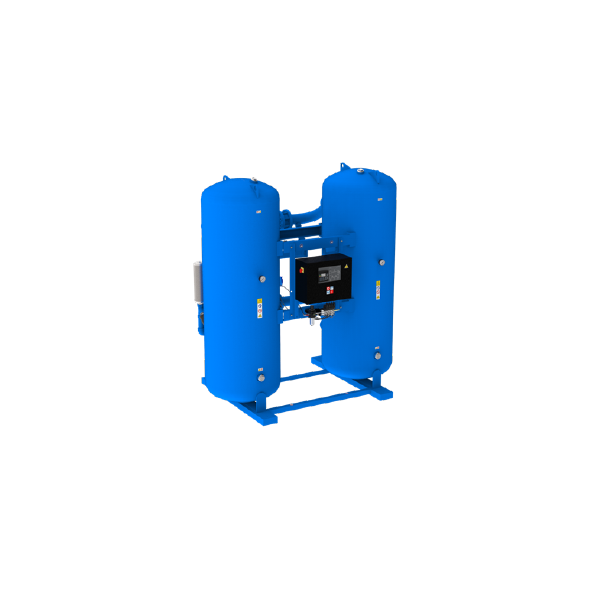

Adsorption Air Dryer OMI HLA1600Pro

Availability: On order

product code: HLA1600PRO

Air flow [l/min]	1600
Flow rate [m3/h]	26667
Ciśnienie [bar]	7
Dewpoint [°C]	-40
Inlet temp. [⁰C]	35
Max. ambient temp. [°C]	25
Connection [BSP]	3"
Power supply [V/Ph/Hz]	230/1/50
Adsorbent	Alumina
Weight [kg]	1440
Hight [mm]	2185
Width [mm]	1928
Lenght [mm]	1270
