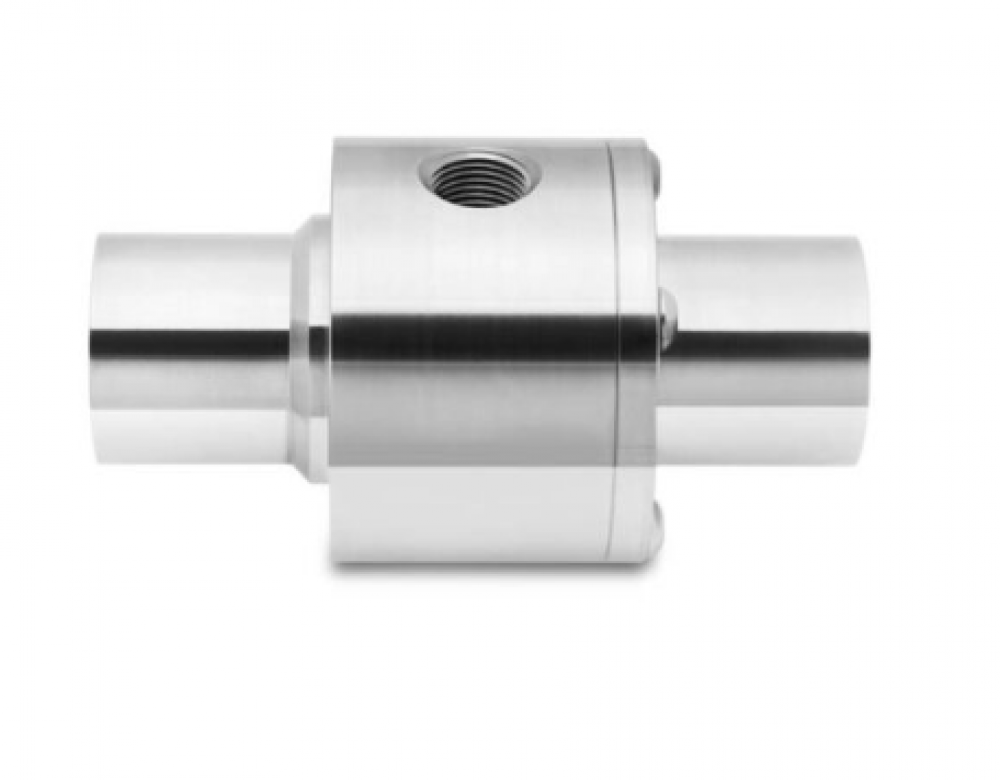

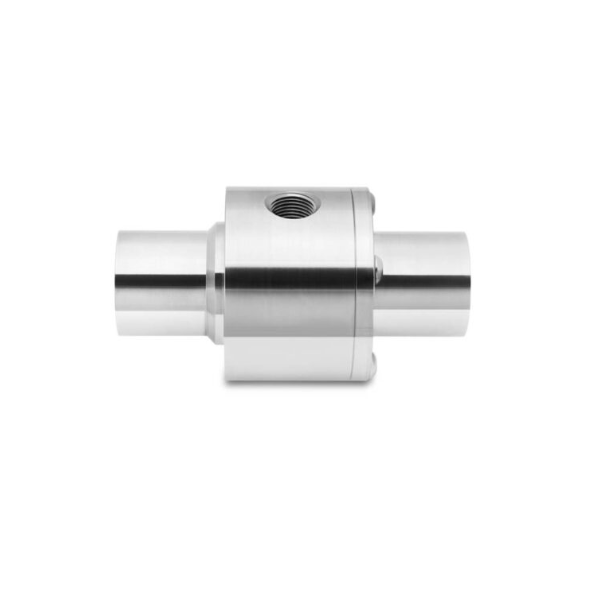

AirMasters AIR-CONV07HTS - Hi Temp. Stainless Steel Ring-Vac Only

Availability: On order

product code: AIR-CONV07HTS

Material	Stainless steel
Air consumption at 5 bar [m3 /h]	161,4
Średnica wewnętrzna [mm]	95
Średnica zewnętrzna [mm]	101,60
Connection type	Female
Connection	1/2"
Vacuum inches	-34
