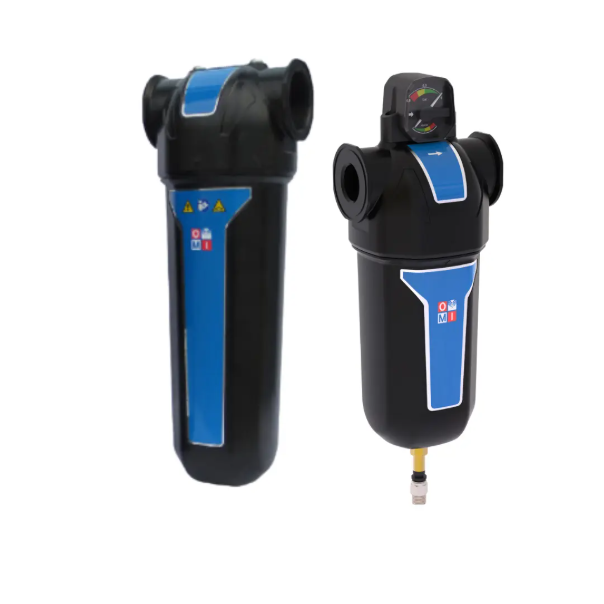

Compressed air filter OMI AF 1000 QF

Availability: On order

product code: AF1000QF

Filtration grade	QF - Dust Filtration
Efficiency [l/min]	16667
Capacity [m3/min]	1000
Ciśnienie [bar]	7
Pressure max [bar]	17
Connection [BSP]	2"
Weight [kg]	5,3
ISO 8573-1 Filtration class	3
Inlet temp. [⁰C]	100
Pressure drop with saturated elements [bar]	0.1
Element replacement time (hours)	4000
