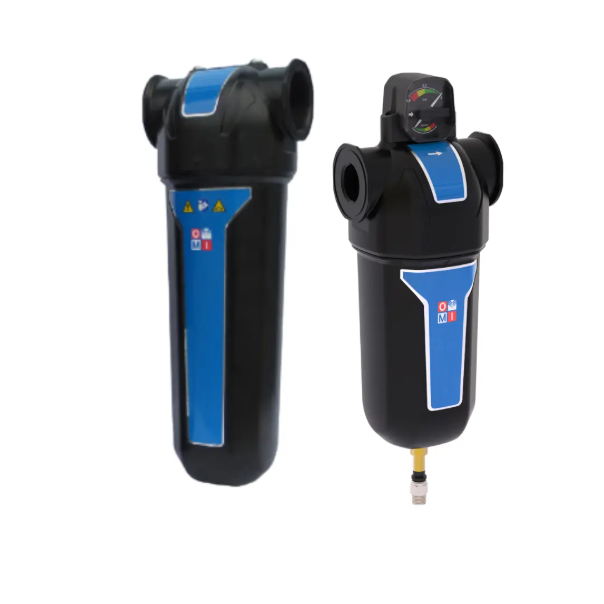

Compressed air filter OMI AF 1560 CF

Availability: On order

product code: AF1560CF

Filtration grade	CF - Activated Carbon Filtration
Efficiency [l/min]	26000
Capacity [m3/min]	1560
Ciśnienie [bar]	7
Pressure max [bar]	17
Connection [BSP]	3"
Weight [kg]	10.7
Inlet temp. [⁰C]	20
Pressure drop with saturated elements [bar]	0.1
Element replacement time (hours)	1000
