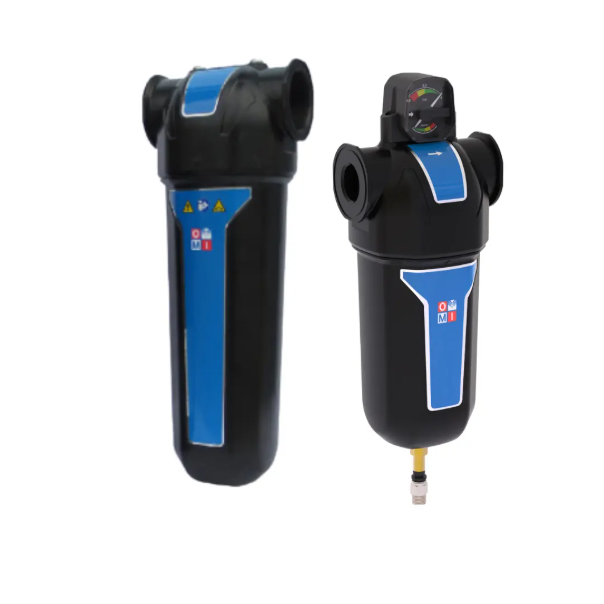

Compressed air filter OMI AF 1830 PF

Availability: On order

product code: AF1830PF

Filtration grade	PF - General purpose Protection Filtration
Efficiency [l/min]	30500
Capacity [m3/min]	1830
Ciśnienie [bar]	7
Pressure max [bar]	17
Connection [BSP]	3"
Weight [kg]	10.7
ISO 8573-1 Filtration class	2
ISO 8573-1 Residual oil filtration class	2
Inlet temp. [⁰C]	20
Pressure drop with saturated elements [bar]	0.11
Element replacement time (hours)	4000
