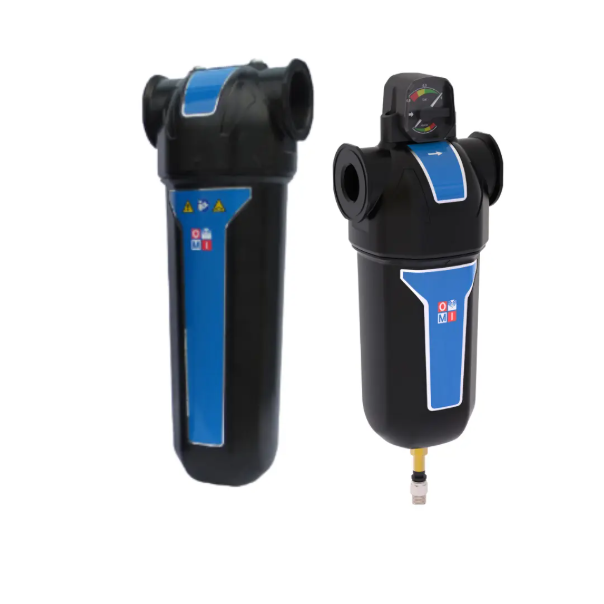

Compressed air filter OMI AF 260 PF

Availability: On order

product code: AF260PF

Filtration grade	PF - General purpose Protection Filtration
Efficiency [l/min]	4333
Capacity [m3/min]	260
Ciśnienie [bar]	7
Pressure max [bar]	17
Connection [BSP]	1"
Weight [kg]	2.1
ISO 8573-1 Filtration class	1
ISO 8573-1 Residual oil filtration class	1
Inlet temp. [⁰C]	20
Pressure drop with saturated elements [bar]	0.11
Element replacement time (hours)	4000
