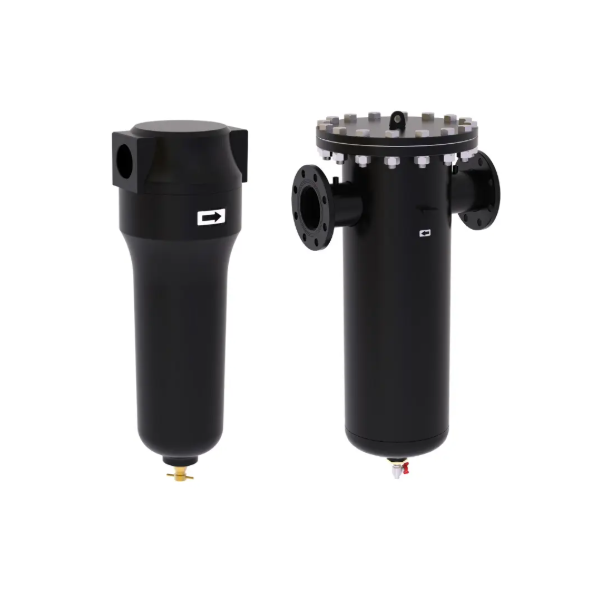

High temperature heavy duty compressed air filter OMI AF HT 1000HF

Availability: On order

product code: AF HT 1000HF

Filtration grade	HF - High Efficiency Oil Removal Filtration
Efficiency [l/min]	16.680
Capacity [m3/min]	1.000
Ciśnienie [bar]	7
Pressure max [bar]	12
Connection [BSP]	2"
Weight [kg]	5.2
Inlet temp. [⁰C]	100

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.
