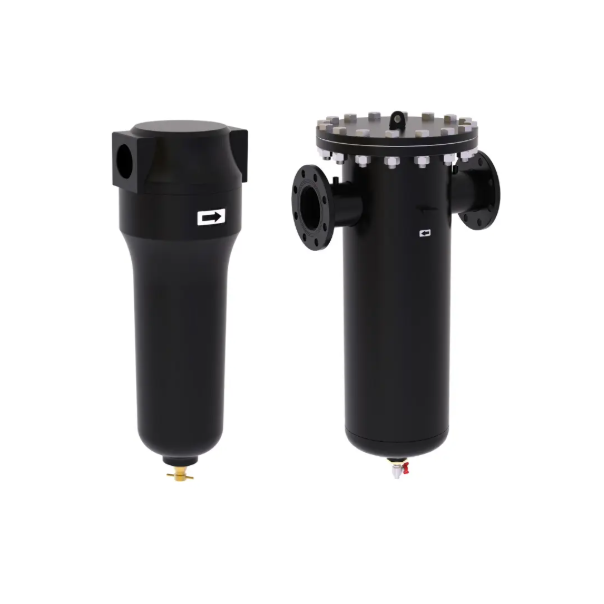

High temperature heavy duty compressed air filter OMI AF HT 1000PF

Availability: On order

product code: AF HT 1000PF

Filtration grade	PF - General purpose Protection Filtration
Efficiency [l/min]	16.680
Capacity [m3/min]	1.000
Ciśnienie [bar]	7
Pressure max [bar]	12
Connection [BSP]	2"
Weight [kg]	5.2
Inlet temp. [⁰C]	100
