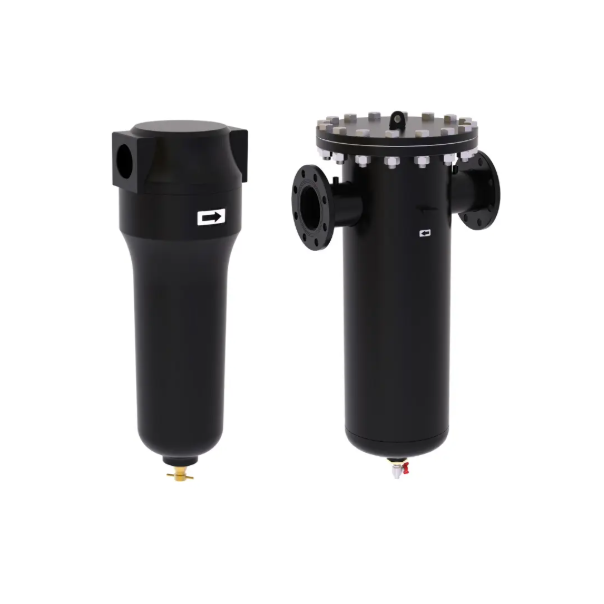

High temperature heavy duty compressed air filter OMI AF HT 110QF

Availability: On order

product code: AF HT 110QF

Filtration grade	QF - Dust Filtration
Efficiency [l/min]	1.860
Capacity [m3/min]	110
Ciśnienie [bar]	7
Pressure max [bar]	12
Connection [BSP]	¾”
Weight [kg]	1.1
Inlet temp. [⁰C]	100
