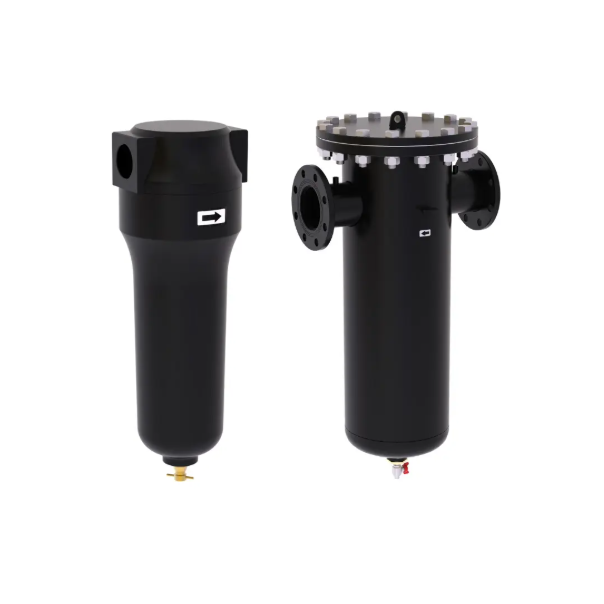

High temperature heavy duty compressed air filter OMI AF HT 2300HF

Availability: On order

product code: AF HT 2300HF

Filtration grade	HF - High Efficiency Oil Removal Filtration
Efficiency [l/min]	38.340
Capacity [m3/min]	2.300
Ciśnienie [bar]	7
Pressure max [bar]	12
Connection [BSP]	3"
Weight [kg]	13.9
