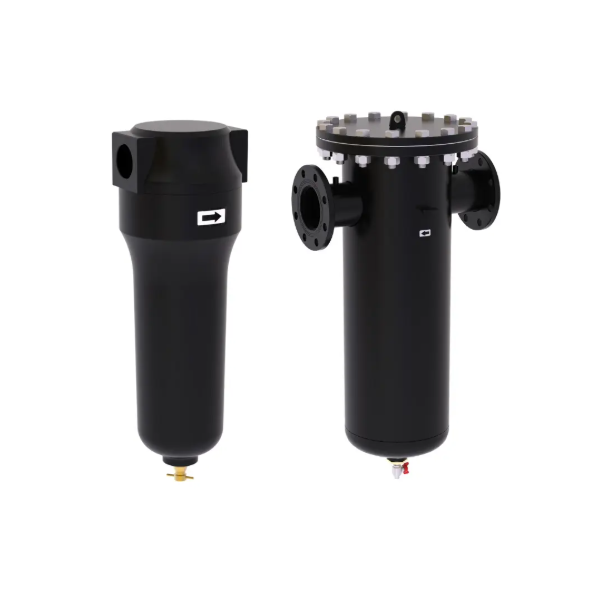

High temperature heavy duty compressed air filter OMI AF HT 2300PF

Availability: On order

product code: AF HT 2300PF

Filtration grade	PF - General purpose Protection Filtration
Efficiency [l/min]	38.340
Capacity [m3/min]	2.300
Ciśnienie [bar]	7
Pressure max [bar]	12
Connection [BSP]	3"
Weight [kg]	13.9
