FLOW 420

Availability: On order

product code: F420-001

Zasilanie [V]	400
Moc [kW]	0,75
Ochrona elektryczna [IP]	55
Max. podciśnienie [mmH2O]	180
Max. przepływ powietrza [m3/h]	1000
Wlot ssący [mm]	100
Poj. zbiornika [l]	45
Poziom hałasu [dB(A)]	70
Filtr podstawowy	STAR
Powierzchnia filtra [cm2-mm]	20 000 - 420
Klasa filtra	Poliester - L
System czyszczenia filtra	Ręczny
Wymiary [cm]	58x93x180h
Waga [kg]	60

Download as PDF

Product description

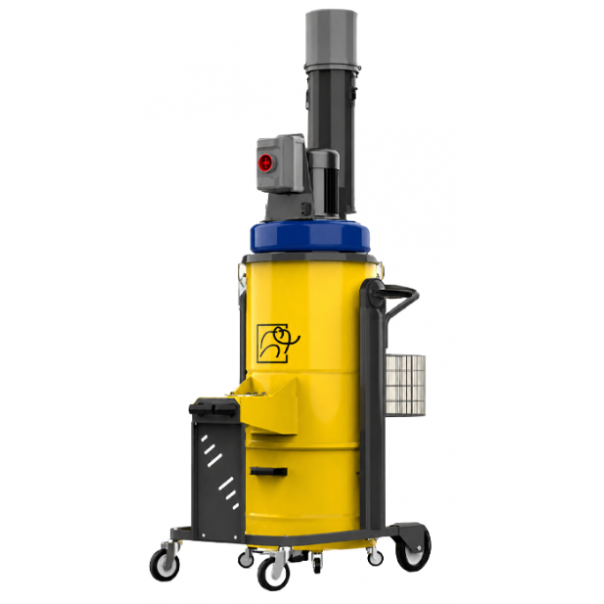

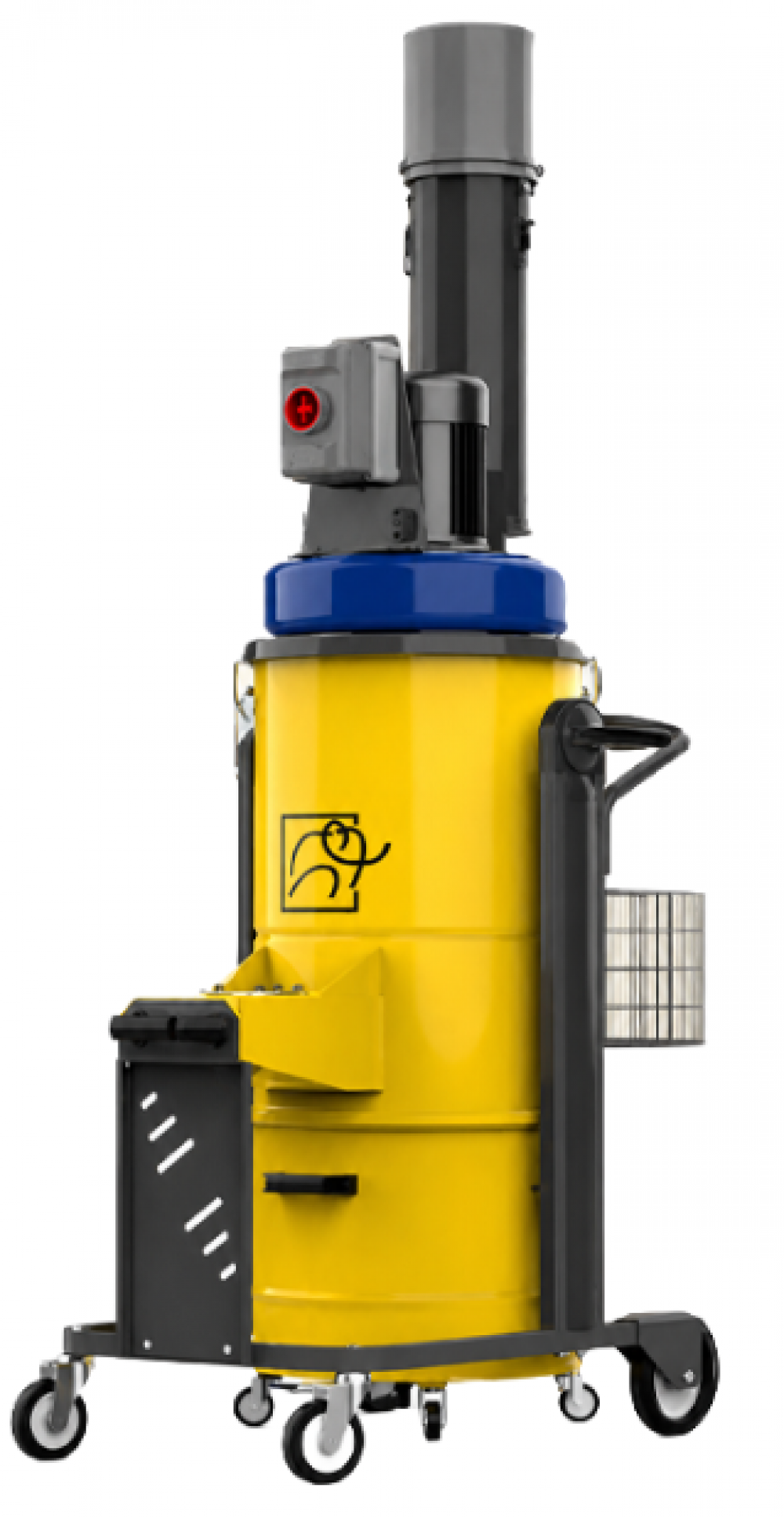

Odpylacz przemysłowy o dużym przepływie F 420

Opis techniczny

Odpylacz F420 wyposażony jest w wysokowydajną jednostkę ssącą pozwalającą na szybkie zebranie znacznych ilości lekkich pyłów unoszących się w przestrzeni roboczej.

W odpylaczu zaimplementowano ręczny system czyszczenia. Pozwala to na częste i skuteczne oczyszczenie filtra z zebranych pyłów. Z pomocą systemu czyszczenia – F420 przez długi czas utrzyma wysoką wydajność odpylania i będzie dłużej służyło w codziennej pracy.

Zasysany materiał kolekcjonowany jest jest w 45 l. zbiorniku umieszczonym na kółkach, dzięki czemu usuwanie zgromadzonych odpadów jest bezpieczne i łatwe, również z możliwością zebrania go bezpośrednio do worków z tworzywa.

Odpylacz umieszczony jest na wytrzymałej ramie stalowej z dwoma kółkami obrotowymi, z których jedno zaopatrzone jest w hamulec. Oprócz tego, w odpylaczu znajduje się koszyk na akcesoria.

Wszystkie elementy metalowe powleczone są żywicą epoksydową.
