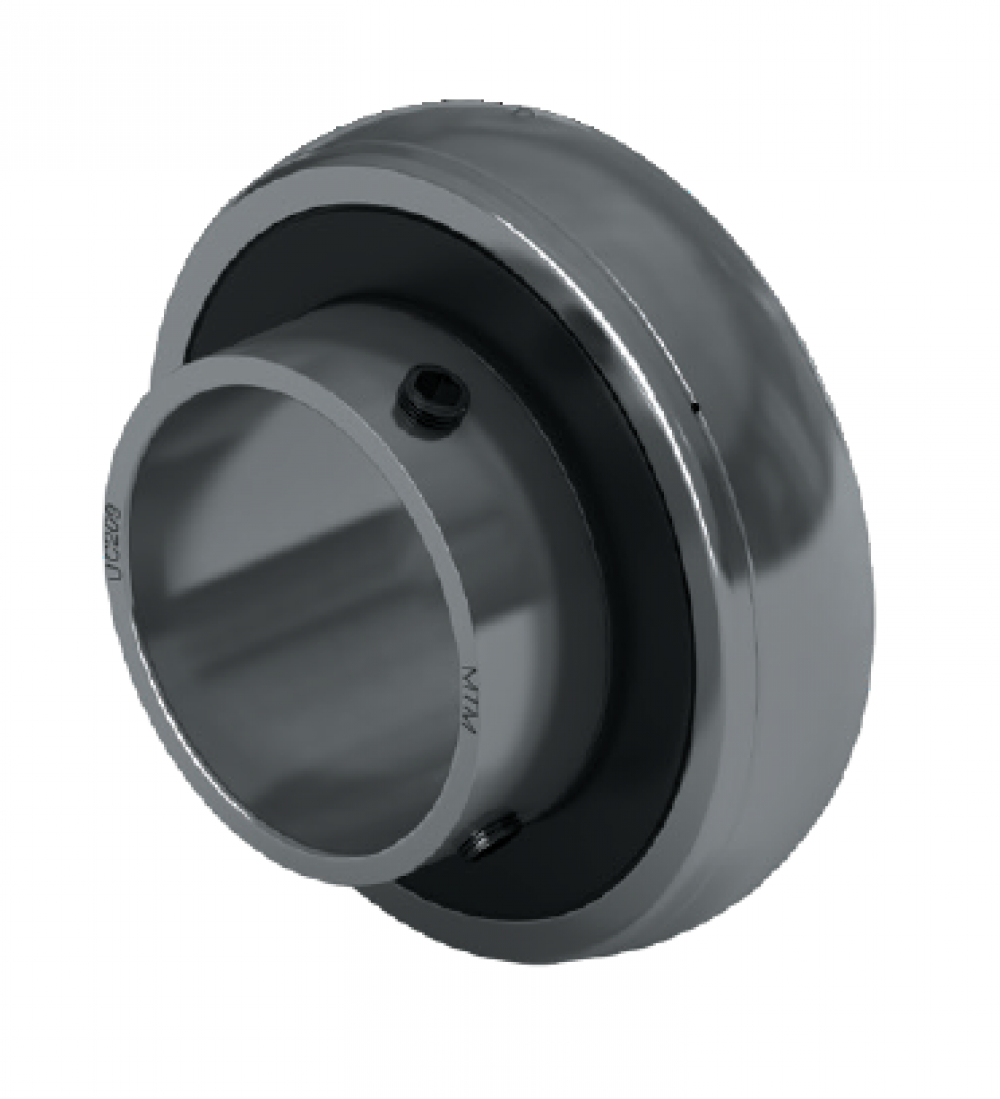

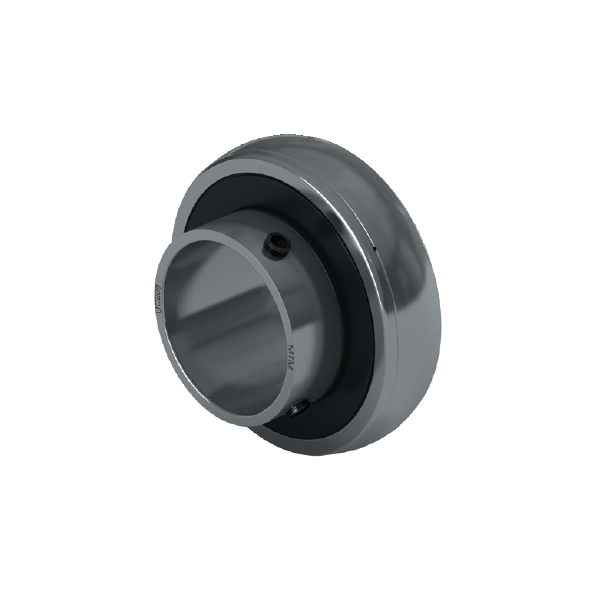

Insert ball bearing UC306

Name: Insert ball bearing UC306
SKU: UC306-MTM

Availability: Available

product code: UC306-MTM

product ean: 5907772148211

Product prices will become visible after signing in.

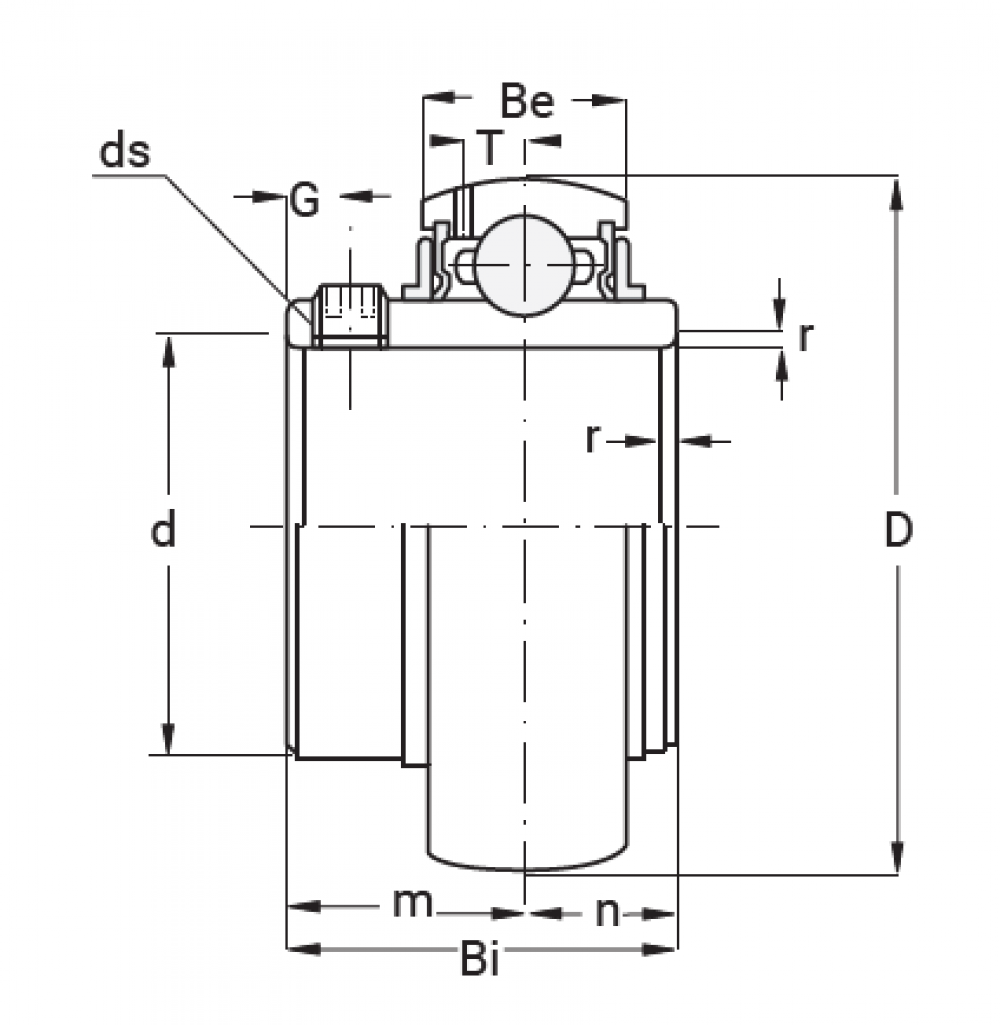

d [mm]	30
D [mm]	72
Bi [mm]	43
Be [mm]	23
r [mm]	2
n [mm]	17
m [mm]	26
G [mm]	6
ds [mm]	M6 x 0,75
T [mm]	6,7
nośność dynam. [N]	20800
nośność stat. [N]	14200
Waga [kg]	0,56

Download as PDF
