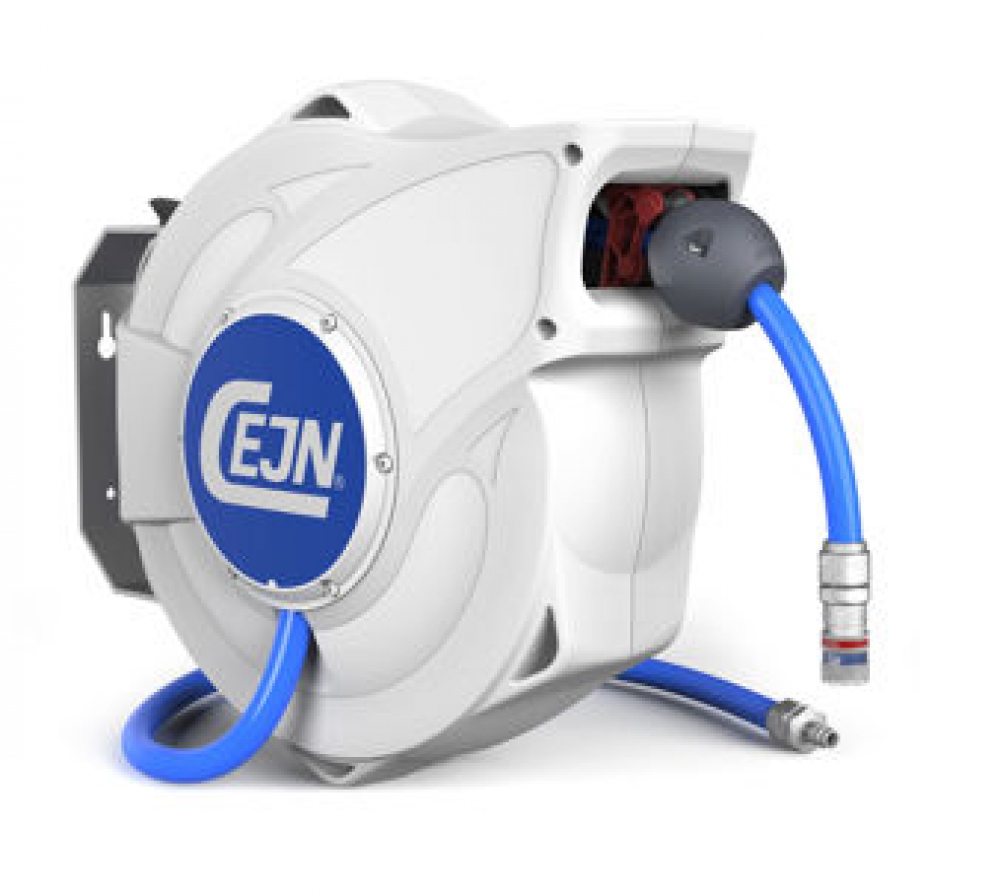

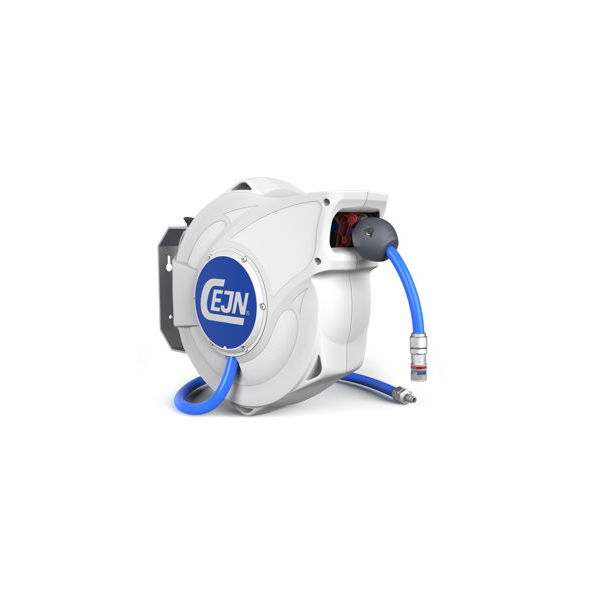

Hose SafetyReel FS 10 m, 11×16 mm – eSafe 326 FDA, 12 bar

Availability: On order

product code: 19 911 2149

Category: Medium reel with steel bracket
Title: Enclosed reel with plastic cover and 10 m hose
Reel type: Enclosed reel
Spool material: Plastic
Drum diameter: 409 mm (16.1")
Hose material: PUR
Reel hose length: 10 m (32.81 ft)
Supply hose length: 1.5 m (4.92 ft)
Inner Ø x outer Ø: 11.0 x 16.0 mm
Inlet: eSafe coupling 326
Outlet: eSafe quick coupling 326 FDA
Maximum working pressure: 12 bar (1.2 MPa)
Hose type: Straight braid
Hose color: Blue
Minimum temperature: -20°C (-4°F)
Maximum temperature: 60°C (140°F)
Weight: 7,100 g (15.65 lb)
Media: Compressed air

Properties:

hose approved for food contact
slow, controlled retraction
hose guide
swivel Hi-Flow
easy installation
detectable stop ball
