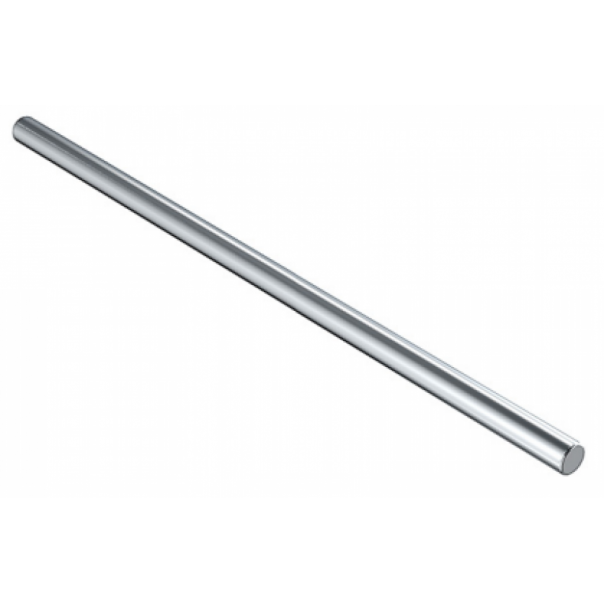

Rod 20 mm length 0,5m

Name: Rod 20 mm length 0,5m
SKU: Rod 20mm (0,5m)-MTM

Availability: On order

product code: Rod 20mm (0,5m)-MTM

product ean: 5907772148433

⌀ Diameter	20
L [mm]	500
Waga [kg/m]	1,23
Diameter tolerance ISO g6 [μm]	-7/-20
Roundness tolerance T1 [μm]	<5
Parallelism tolerance T2 [μm]	13
Straightness tolerance T3 [μm]	0,15
Hardened layer's thickness [mm]	≥1,5
Hardness [HRC]	58±2
Surface roughness [Ra.]	0,4-0,8

Download as PDF
