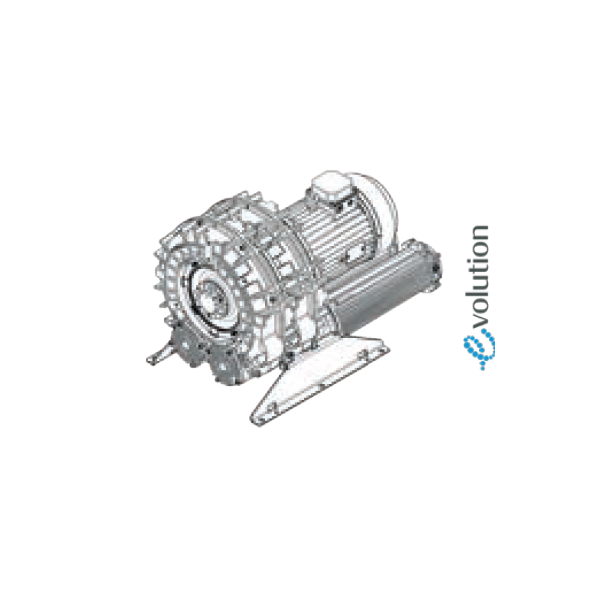

Single Stage Double Impeller Sidechannel Blowers FPZ SCL e08TS, IE3 - 3 Phase Motor, 11-13 kW

Availability: On order

product code: SE08TS50+0002

Moc [kW]	11
Zasilanie [V/Hz]	50
Prędkość obr. [obr./min]	2940
Wydajność [m3/h]	1008
Ssanie [mbar]	250
Sprężanie [mbar]	250
Poziom hałasu [dB(A)]	78.2
Waga [kg]	132
Klasa silnika	IE3
Zabezpieczenie [IP]	55
Izolacja	F

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request
