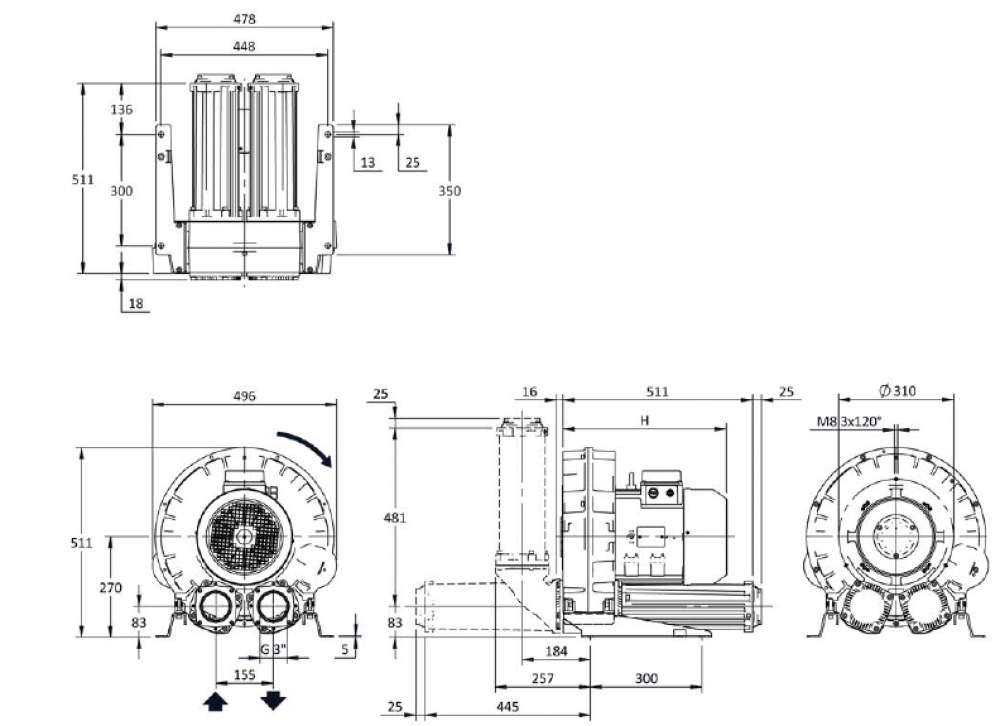

Single Stage Single Impeller Sidechannel Blower SCL e08MS, IE3 - 3 Phase Motor, 9,2-11 kW

Availability: On order

product code: SE08MS50+0016

Moc [kW]	9,2
Zasilanie [V/Hz]	50
Prędkość obr. [obr./min]	2935
Wydajność [m3/h]	562
Sprężanie [mbar]	425
Poziom hałasu [dB(A)]	72.1
Waga [kg]	87
Klasa silnika	IE3
Zabezpieczenie [IP]	55
Izolacja	F
