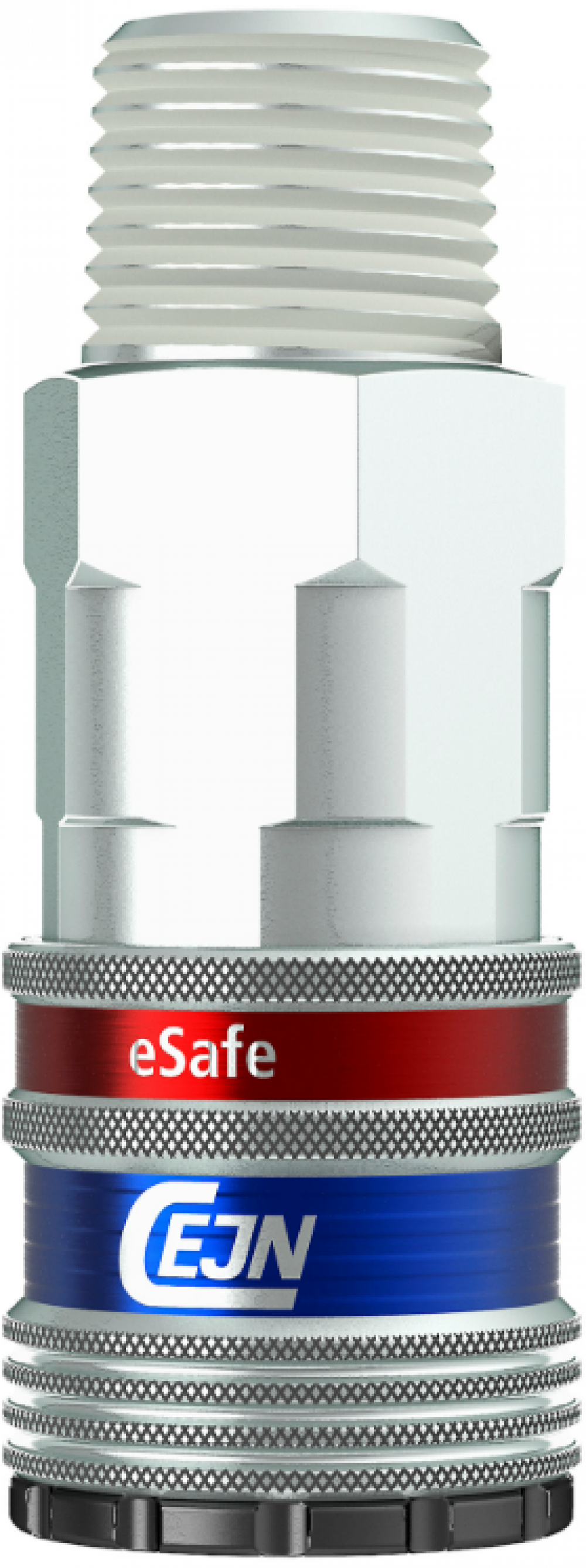

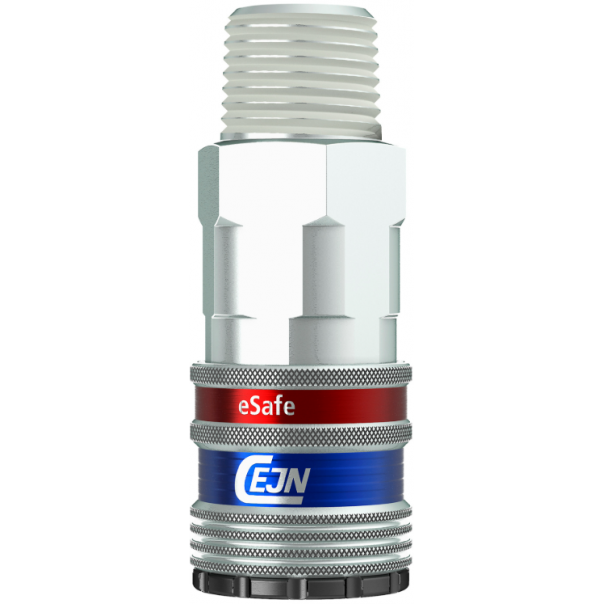

Safety Coupling Cejn eSafe R 3/8" male

Name: Safety Coupling Cejn eSafe R 3/8" male
SKU: 10 300 2154

Availability: On order

product code: 10 300 2154

Product prices will become visible after signing in.

Flow diameter [mm]	5.5
Air flow [l/min]	1150
Pressure max [bar]	16
Min. burst pressure [bar]	140
Temperature range [°C]	-20 - 100
Connection force [N]	86
Standards	ARO 210 Standard, 5,5 mm

Download as PDF

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF210

UCF210-MTM

d [mm] - 50

a [mm] - 143

e [mm] - 111

i [mm] - 22

g [mm] - 18

l [mm] - 40

S [mm] - 16

Z [mm] - 54,6

Bi [mm] - 51,6

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP205

UCP205-MTM

d [mm] - 25

h [mm] - 36,5

a [mm] - 140

e [mm] - 105

b [mm] - 38

S1 [mm] - 13

S2 [mm] - 19

g [mm] - 15

W [mm] - 71

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Deep groove ball bearing 6001 2RS

6001-2RS-MTM

d [mm] - 12

D [mm] - 28

B [mm] - 8

load rating dynam. [N] - 5070

load rating stat. [N] - 2360

Weight [kg] - 0,022

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCP206

UCP206-MTM

d [mm] - 30

h [mm] - 42,9

a [mm] - 160

e [mm] - 121

b [mm] - 44

S1 [mm] - 17

S2 [mm] - 20

g [mm] - 17

W [mm] - 84

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF205

UCF205-MTM

d [mm] - 25

a [mm] - 95

e [mm] - 70

i [mm] - 16

g [mm] - 14

l [mm] - 27

S [mm] - 12

Z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M10

Note: - Version TS (with triple sealing) available on request

On order

Product prices will become visible after signing in.
