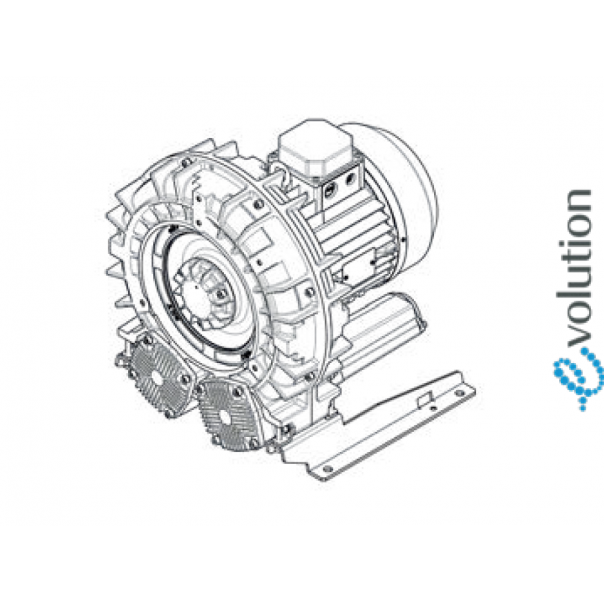

Double Stage Single Impeller Sidechannel Blowers FPZ SCL e07MD, IE3 - 3 Phase Motor, 5,5-6,5 kW

Name: Double Stage Single Impeller Sidechannel Blowers FPZ SCL e07MD, IE3 - 3 Phase Motor, 5,5-6,5 kW
SKU: SE07MD50+0005

Availability: On order

product code: SE07MD50+0005

Product prices will become visible after signing in.

Power [kW]	5,5
Power supply [V/Hz]	50
Speed [rpm]	2940
Flow rate [m3/h]	209
Compression [mbar]	650
Noise level [dB(A)]	72
Weight [kg]	70
Class	IE3
Protection class [IP]	55
Insulation Class	F

Download as PDF
