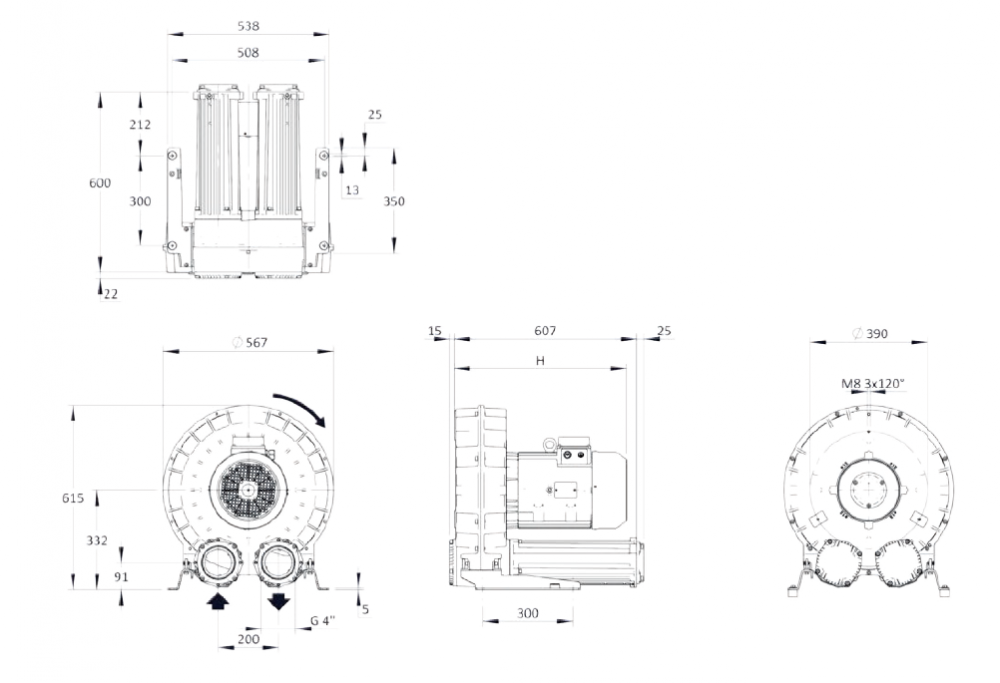

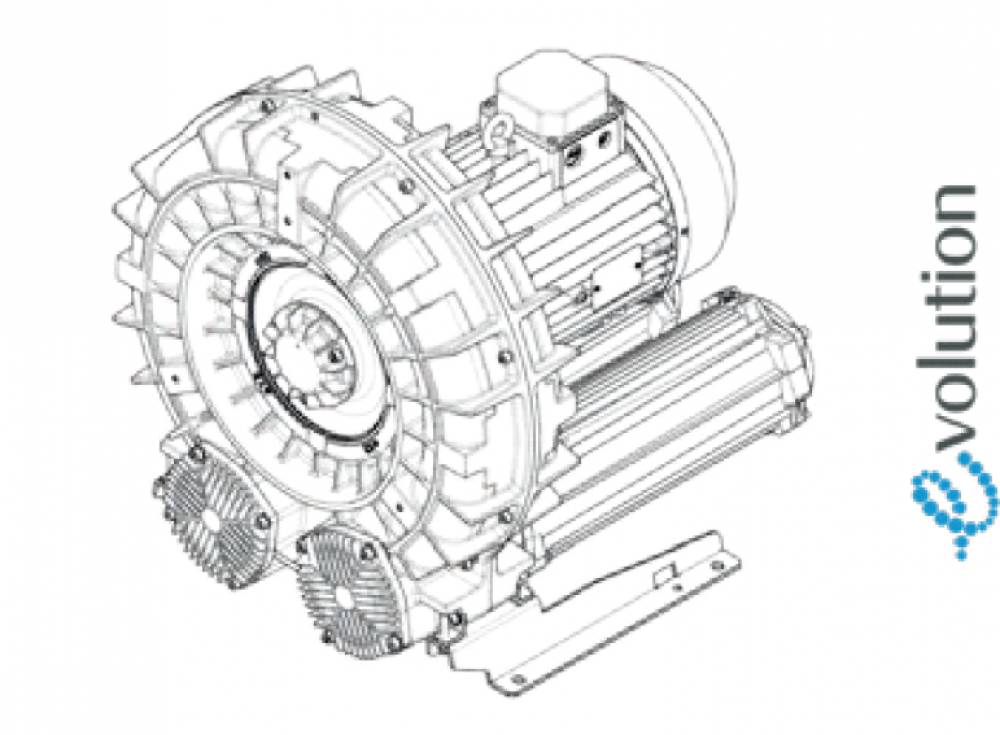

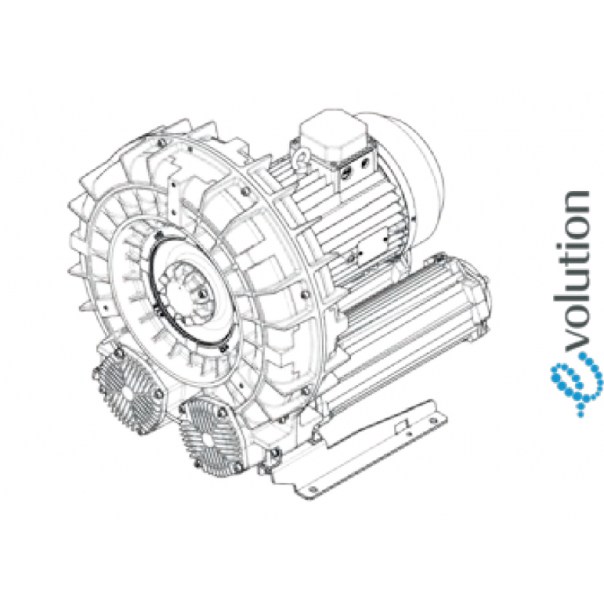

Double Stage Single Impeller Sidechannel Blowers FPZ SCL e12MD, IE3 - 3 Phase Motor, 15-18 kW

Availability: On order

product code: SE12MD50+0001

Moc [kW]	15
Zasilanie [V/Hz]	50
Prędkość obr. [obr./min]	2935
Wydajność [m3/h]	521
Sprężanie [mbar]	650
Poziom hałasu [dB(A)]	78
Waga [kg]	118
Klasa silnika	IE3
Zabezpieczenie [IP]	55
Izolacja	F

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request
