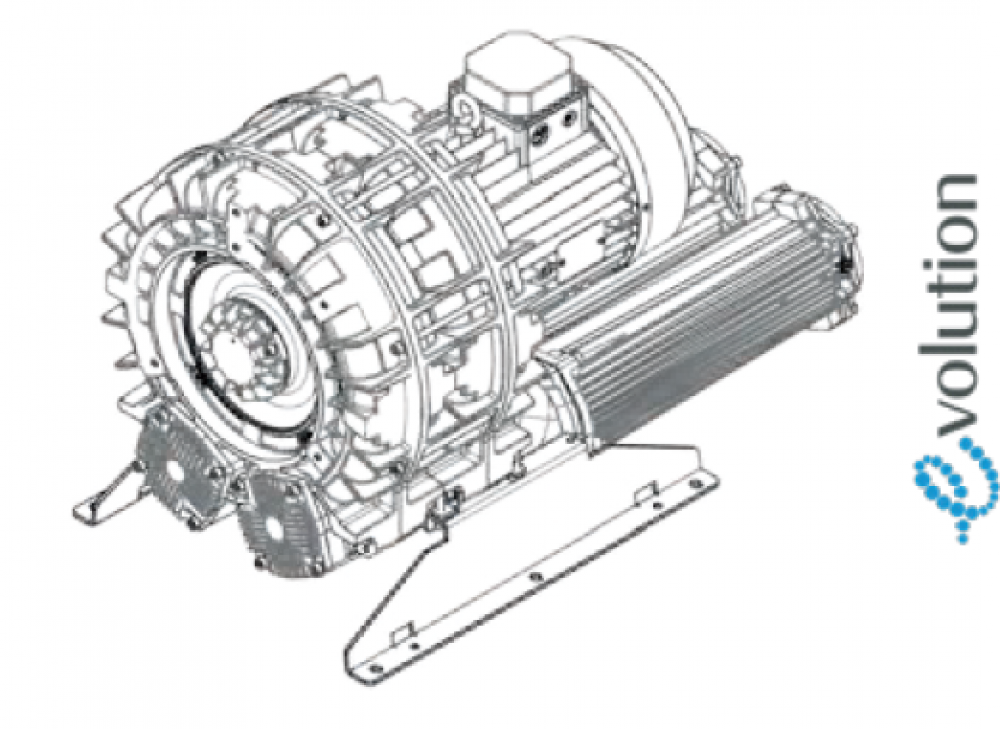

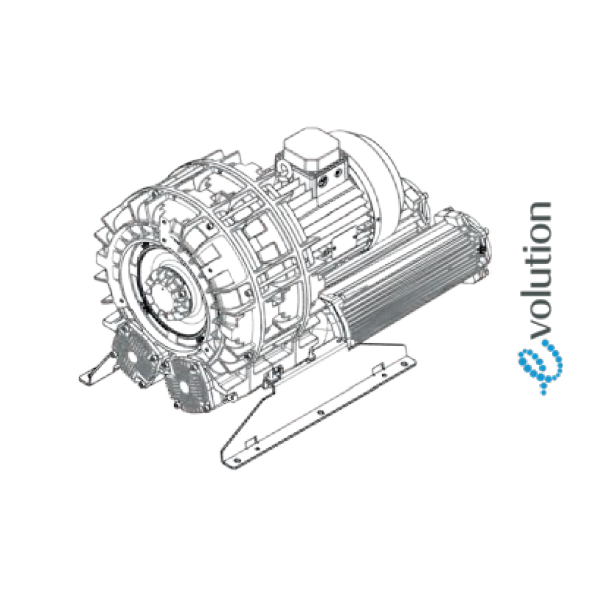

Single Stage Double Impeller Sidechannel Blowers FPZ SCL e07TS, IE3 - 3 Phase Motor, 9,2-11 kW

Availability: On order

product code: SE07TS50+0002

Moc [kW]	9,2
Zasilanie [V/Hz]	50
Prędkość obr. [obr./min]	2935
Wydajność [m3/h]	834
Sprężanie [mbar]	275
Poziom hałasu [dB(A)]	73
Waga [kg]	117
Klasa silnika	IE3
Zabezpieczenie [IP]	55
Izolacja	F
