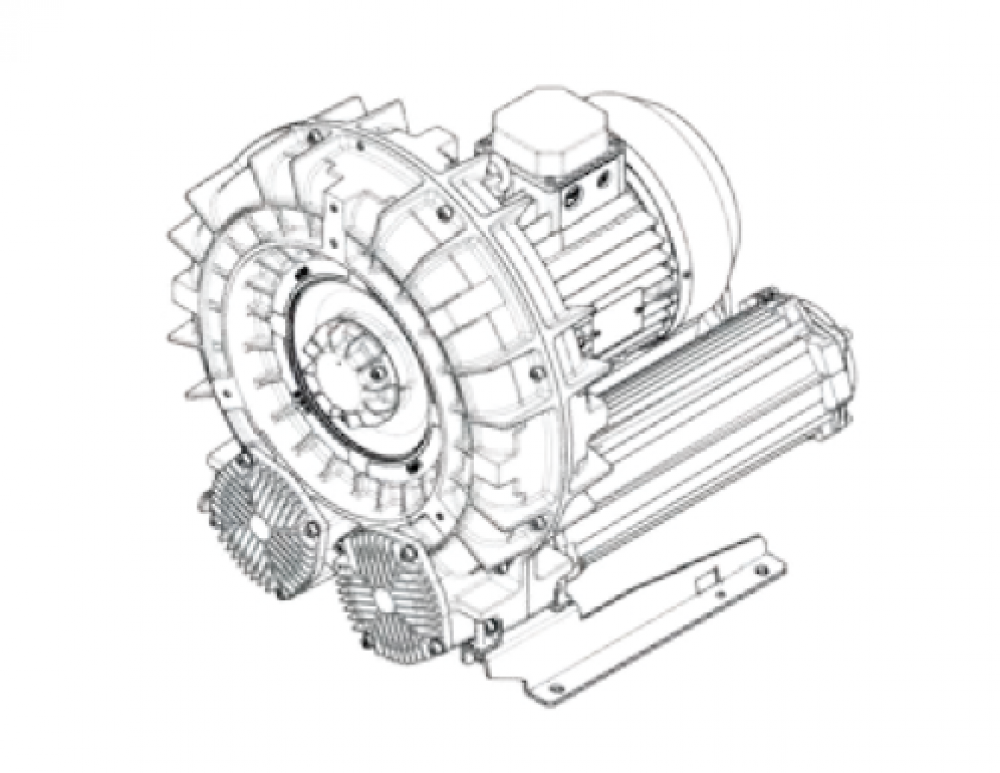

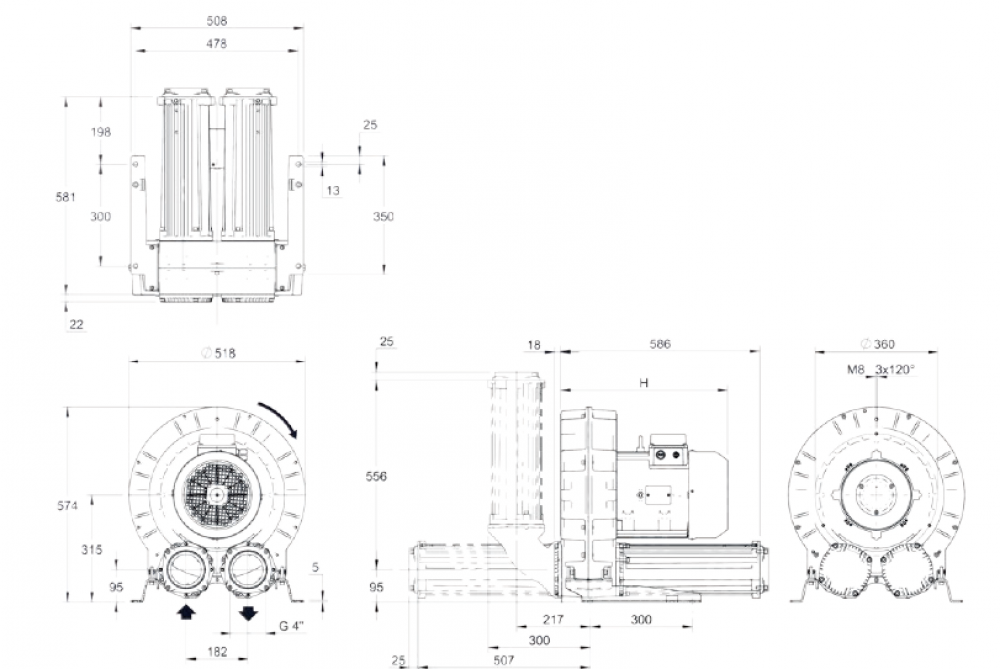

Single Stage Single Impeller Sidechannel Blower SCL e09MS, IE3 - 3 Phase Motor, 5,5-6,5 kW

Availability: On order

product code: SE09MS50+0001

Power [kW]	5,5
Power supply [V/Hz]	50
Speed [rpm]	2940
Flow rate [m3/h]	673
Suction [mbar]	200
Compression [mbar]	200
Noise level [dB(A)]	74
Weight [kg]	83
Class	IE3
Protection class [IP]	55
Insulation Class	F

Pillow Block Bearing UCFL204

UCFL204-MTM

d [mm] - 17

a [mm] - 113

e [mm] - 90

i [mm] - 15

g [mm] - 11

l [mm] - 25,5

S [mm] - 12

b [mm] - 60

z [mm] - 33,3

Bi [mm] - 31

n [mm] - 12,7

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Non-standard bearing 60/22 2RS

60/22-2RS-MTM

d [mm] - 22

D [mm] - 44

B [mm] - 12

load rating dynam. [N] - 10400

load rating stat. [N] - 5050

Weight [kg] - 0,081

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCFL206

UCFL206-MTM

d [mm] - 30

a [mm] - 148

e [mm] - 117

i [mm] - 18

g [mm] - 13

l [mm] - 31

S [mm] - 16

b [mm] - 80

z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M14

Note: - Version TS (with triple sealing) available on request

On order

Product prices will become visible after signing in.

Ball Bearing 6204 2RSC3

6204-2RSC3-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFL205

UCFL205-MTM

d [mm] - 25

a [mm] - 130

e [mm] - 99

i [mm] - 16

g [mm] - 13

l [mm] - 27

S [mm] - 16

b [mm] - 68

z [mm] - 35,8

Bi [mm] - 34,1

n [mm] - 14,3

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Ball Bearing 6204 2RS

6204-2RS-MTM

d [mm] - 20

D [mm] - 47

B [mm] - 14

load rating dynam. [N] - 12700

load rating stat. [N] - 6550

Weight [kg] - 0,106

Available

Product prices will become visible after signing in.

Bearing MR105 2RS

MR105-2RS-MTM

d [mm] - 5

D [mm] - 10

B [mm] - 3

Weight [kg] - 0,001

On order

Product prices will become visible after signing in.

Ball bearing 608 2RS

608-2RS-MTM

d [mm] - 8

D [mm] - 22

B [mm] - 7,0

Bs [mm] - 7,0

load rating dynam. [N] - 3250

load rating stat. [N] - 1370

Weight [kg] - 0,01210

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCFC207

UCFC207-MTM

d [mm] - 35

a [mm] - 135

p [mm] - 110

e [mm] - 77,8

i [mm] - 11

S [mm] - 14

j [mm] - 8

k [mm] - 9

g [mm] - 26

f [mm] - 90

z [mm] - 36,4

Bi [mm] - 42,9

n [mm] - 17,5

Bolt - M12

Note: - Version TS (with triple sealing) available on request

On order

Product prices will become visible after signing in.

Pillow Block Bearing UCF206

UCF206-MTM

d [mm] - 30

a [mm] - 108

e [mm] - 83

i [mm] - 18

g [mm] - 14

l [mm] - 31

S [mm] - 12

Z [mm] - 40,2

Bi [mm] - 38,1

n [mm] - 15,9

Bolt - M10

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Pillow Block Bearing UCF208

UCF208-MTM

d [mm] - 40

a [mm] - 130

e [mm] - 102

i [mm] - 21

g [mm] - 16

l [mm] - 36

S [mm] - 16

Z [mm] - 51,2

Bi [mm] - 49,2

n [mm] - 19

Bolt - M14

Note: - Version TS (with triple sealing) available on request

Available

Product prices will become visible after signing in.

Rod end SA06 T/K

SA06-T/K-MTM

D [mm] - 6

B [mm] - 9

M [mm] - 6,75

A [mm] - 20

F [mm] - 36

L [mm] - 46

O [mm] - 8,9

G [mm] - M6 x 1,00

GL [mm] - 22

Weight [kg] - 0,020

load rating dynam. [N] - 7200

load rating stat. [N] - 7650

Available

Product prices will become visible after signing in.
