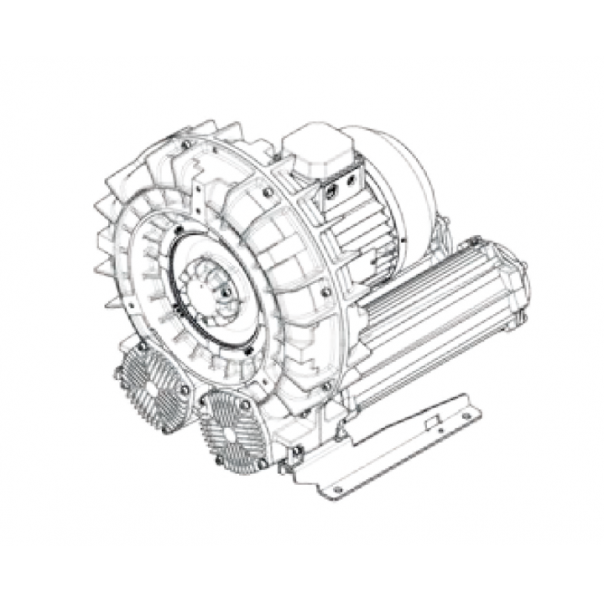

Double Stage Single Impeller Sidechannel Blowers FPZ SCL e09MD, IE3 - 3 Phase Motor, 7,5-9 kW

Availability: On order

product code: SE09MD50+0001

Moc [kW]	7,5
Zasilanie [V/Hz]	50
Prędkość obr. [obr./min]	2940
Wydajność [m3/h]	326
Sprężanie [mbar]	625
Poziom hałasu [dB(A)]	76
Waga [kg]	90
Klasa silnika	IE3
Zabezpieczenie [IP]	55
Izolacja	F
